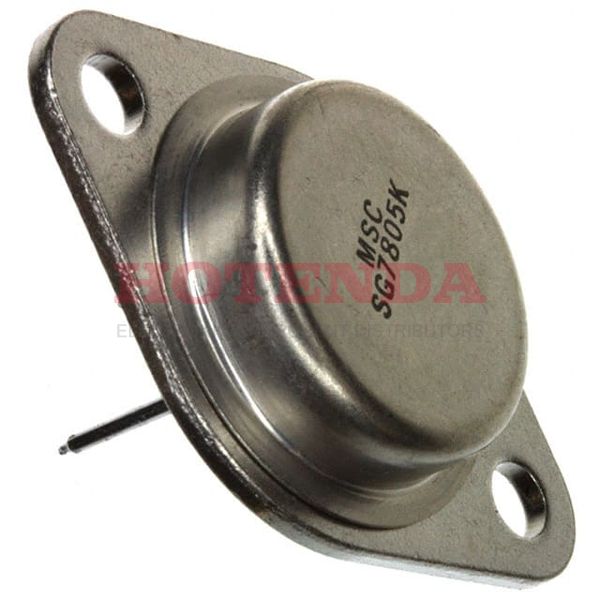

SG7805K Overview
Bulk cases are used for delivery. The Liner regulator IC is packaged in TO-204AA, TO-3 case. On the Linear IC itself, there are 2 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Through Hole operating temperature range by the Voltage Regulator IC. Default settings are set to -55°C~125°C TA degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 1.5A from this regulator IC. There are a total of 2 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. For your information, the basic part number for this regulator IC is SG7805. In order to meet the operation requirements, its maximal output current reaches 1.5A. It operates in the 6mA Quiescent Current state. This IC regulator is a part of the Military, MIL-STD-883 Series of devices.
SG7805K Features
SG7805K Applications
There are a lot of Microchip Technology
SG7805K Linear Voltage Regulators applications.
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
