Name: SG7805AT
Brand: Microchip Technology
SKU: SG7805AT
Availability: InStock

new-10%

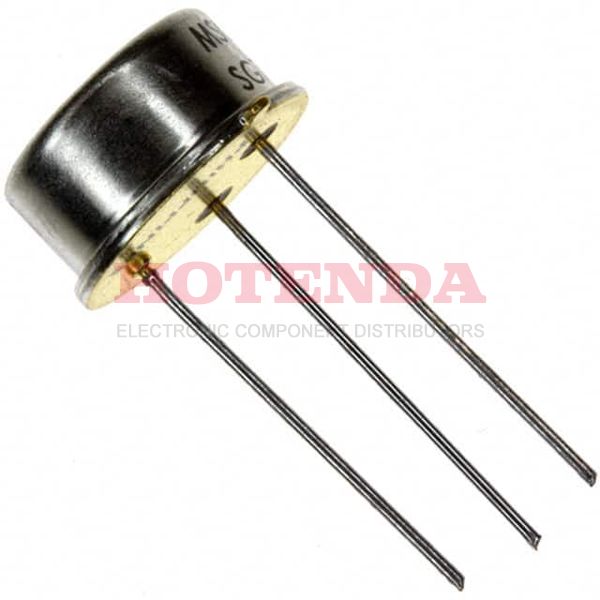

SG7805AT

Manufacturer part number:SG7805AT

Manufacturer:Microchip Technology

Description:Current Limit, Enable Fixed SG7805 PMIC Military, MIL-STD-883 Series 3 TO-205AD, TO-39-3 Metal Can

Case Package:SOT-23

Datasheet:SG7805AT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 3 weeks ago)
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Number of Pins	3
Supplier Device Package	TO-39
Mounting Style	SMD/SMT
Maximum Operating Temperature	+ 150 C
Minimum Operating Temperature	- 55 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Bulk
Base Product Number	SG7805
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-55°C~125°C TA
Packaging	Bulk
Series	Military, MIL-STD-883
Published	1999
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	TIN LEAD
Terminal Position	BOTTOM
Terminal Form	WIRE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	SG7805
Pin Count	3
Current - Supply (Max)	7mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	50V
Output Voltage	5V
Output Type	Fixed
Max Output Current	1.5A
Polarity	Positive
Output Configuration	Positive
Output Current	1.5 A
Current - Output	1.5A
Quiescent Current	6mA
Control Features	Current Limit, Enable
Accuracy	1.5 %
Output Voltage 1	5V
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Voltage Dropout (Max)	2.5V @ 500mA
PSRR	68dB (120Hz)
Product Type	Linear Voltage Regulators
Dropout Voltage1-Nom	2V
Min Output Voltage	4.92V
Voltage - Output (Max)	-
Line Regulation	25 mV
Load Regulation	25 mV
Product	Fixed Voltage Regulators
Product Category	Linear Voltage Regulators
Radiation Hardening	Yes
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

SG7805AT Product Details

SG7805AT Overview

Bulk cases are used for delivery. The Liner regulator IC is packaged in TO-205AD, TO-39-3 Metal Can case. On the Linear IC itself, there are 3 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Through Hole operating temperature range by the Voltage Regulator IC. Default settings are set to -55°C~125°C TA degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 1.5A from this regulator IC. On this chip, there are a total of 3 pins in total. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. Chips have 3 pins. For your information, the basic part number for this regulator IC is SG7805. In order to meet the operation requirements, its maximal output current reaches 1.5A. It operates in the 6mA Quiescent Current state. This IC regulator is a part of the Military, MIL-STD-883 Series of devices.
