Name: SG137AT-DESC
Brand: Microchip Technology
SKU: SG137AT-DESC
Availability: InStock

new-10%

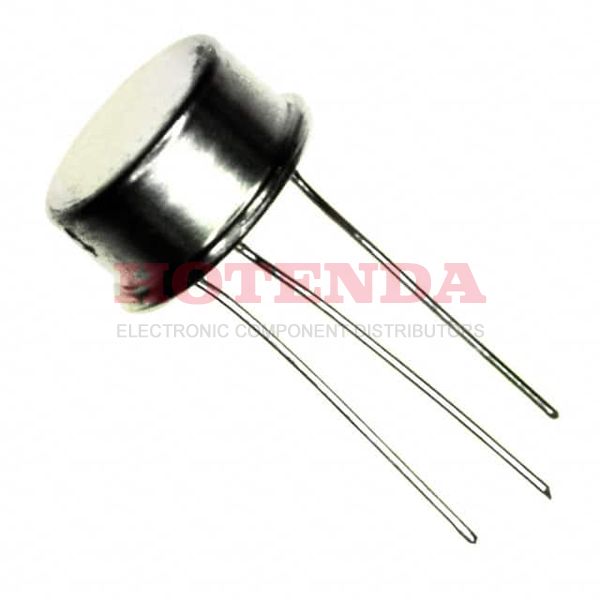

SG137AT-DESC

Manufacturer part number:SG137AT-DESC

Manufacturer:Microchip Technology

Description:- Adjustable SG137 PMIC Military, MIL-STD-883 Series 3 TO-205AD, TO-39-3 Metal Can

Case Package:SOT-23

Datasheet:SG137AT-DESC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Number of Pins	3
Supplier Device Package	TO-39
Supplier Package	TO-39
Junction to Case	15 °C/W
Input Voltage Range	-36, -2.3 V
Maximum Input Voltage	-36 V
Junction to Ambient	120 °C/W
Mounting	Through Hole
Package	Tray
Base Product Number	SG137
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-55°C~125°C
Packaging	Tray
Series	Military, MIL-STD-883
Published	2009
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	TIN LEAD
Terminal Position	BOTTOM
Terminal Form	PIN/PEG
Number of Functions	1
Base Part Number	SG137
Pin Count	3
Function	Standard
Number of Outputs	1
Voltage - Input (Max)	-36V
Output Voltage	-37V
Output Type	Adjustable
Max Output Current	1.5A
Polarity	Negative
Output Configuration	Negative
Output Current	1.5 A
Current - Output	500mA
Control Features	-
Accuracy	1 %
Voltage - Output (Min/Fixed)	-1.25V
Number of Regulators	1
Min Input Voltage	-2.3V
Protection Features	Over Current, Over Temperature, Over Voltage
Voltage Dropout (Max)	-
PSRR	66dB ~ 80dB (120Hz)
Reference Voltage	-1.262V
Dropout Voltage1-Nom	3V
Voltage - Output (Max)	-36V
Min Current Limit	500mA
Output Voltage Accuracy	1 %
Load Regulation-Max(%)	1%
Line Regulation	0.01 %/V
Load Regulation	0.5 %
Radiation Hardening	No
RoHS Status	RoHS Compliant

SG137AT-DESC Product Details

SG137AT-DESC Overview

This Voltage Regulator IC comes inTray packaging. This battery regulator is contained in a TO-205AD, TO-39-3 Metal Can package. There are 3 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Through Hole. The IC Regulator is set to operate at -55°C~125°C degrees. This regulator's output function is configured to be Negative. Its current output stands at 500mA. IC voltage regulator has a sum of 3 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. The component's pin number remains 3. FYI, the basic part number for this IC regulator is SG137. It works in 1.5A output current at mostIt is part of the Military, MIL-STD-883 Series.
