PL602-38QC-R Overview

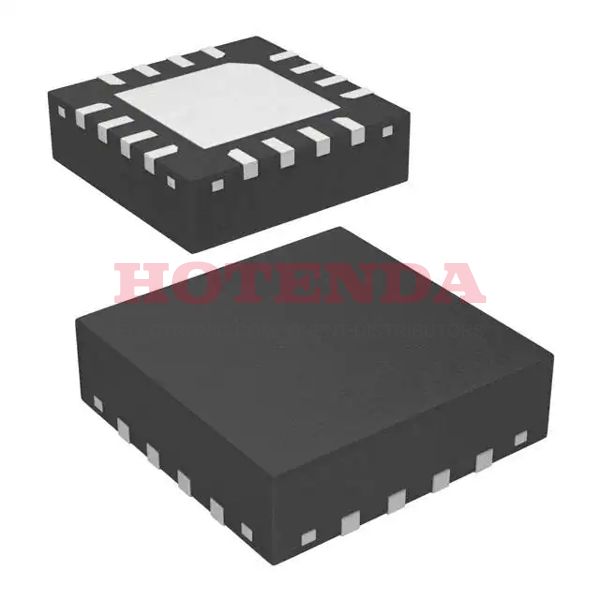

The Tape & Reel (TR) method is used for packaging clock ICs. As part of the 16-WFQFN Exposed Pad package, this clock generator is embedded. This Clock PLL will be fed by Crystal as its input. It is possible to access the full performance of the electrical part by implementing 1 circuits. 800MHz is the maximal value for normal operation. This component can be conveniently installed on the panel thanks to the Surface Mount. As long as you provide 2.97V~3.63V supply voltage, it will work. Using the test statistics, we estimate that the ambient temperature should be 0°C~70°C. The frequency synthesizer in this product is compatible with all levels of LVPECL logic. It is possible to find its related electronic parts by searching for the base part number PL602. With TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR, this clock generator produces better clock signals. With an advanced manufacturing process and steady structure, this clock generator can generate 800MHz clocks per second. In some instances, you may notice that this analog clock generator runs at its lowest possible frequency. Do not panic; just follow what the datasheets instruct.
PL602-38QC-R Features
Available in the 16-WFQFN Exposed Pad
PL602-38QC-R Applications
There are a lot of Microchip Technology PL602-38QC-R Clock Generators applications.
- Tracking filters
- Simple clock clean-up circuits
- Laptops
- Signal demodulation
- CPUs
- Computers to manage memory cards
- Skew suppression
- High-speed communication applications
- Clock signals to the high-speed Digital RF circuits
- Ultrasound diagnosis
