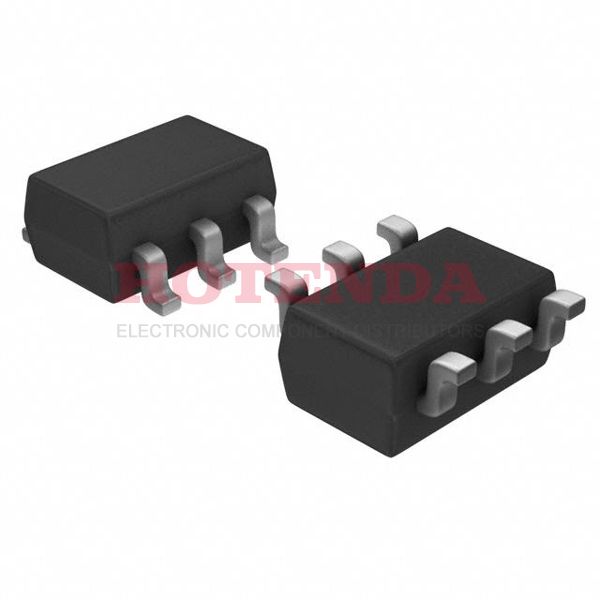

PL602-22TC-R Overview
As a clock IC, it uses the Tape & Reel (TR) package. A Clock PLL is included with the SOT-23-6 package. Frequency generator can maintain a maximum temperature of NOT SPECIFIED under reflowing conditions. 8 terminations can be found in frequency generators. Clock generator ics require a voltage of 2.5V. HCSL, Crystal is designed for clock generator's input. It is possible to access the full performance of the electrical part by implementing 1 circuits. RF synthesizers based on this clock provide frequencies up to 125MHz maximum. Due to the Surface Mount-shape, this electronic component can be conveniently installed on the panel. There are CLOCK GENERATOR, PROCESSOR SPECIFIC uPs/uCs/Peripheral ICs integrated into this digital clock generator. This clock PLL works with a supply voltage of 2.25V~3.63V. By calculating the test statistics, 0°C~70°C is the appropriate ambient temperature. The RF synthesizer is compatible with LVCMOS logic levels. It is possible to find its related electronic parts by searching for the base part number PL602.
PL602-22TC-R Features
Available in the SOT-23-6
Supply voltage of 2.5V
PL602-22TC-R Applications
There are a lot of Microchip Technology PL602-22TC-R Clock Generators applications.
- Bit synchronization
- Digital HDTV systems
- Time to digital converters
- Mixed mode (analog and digital) applications
- Small signal recovery
- Local oscillators (LOs)
- FPGA and processor clocks
- Cable television converter boxes
- Fiber Channel
- Automatic control
