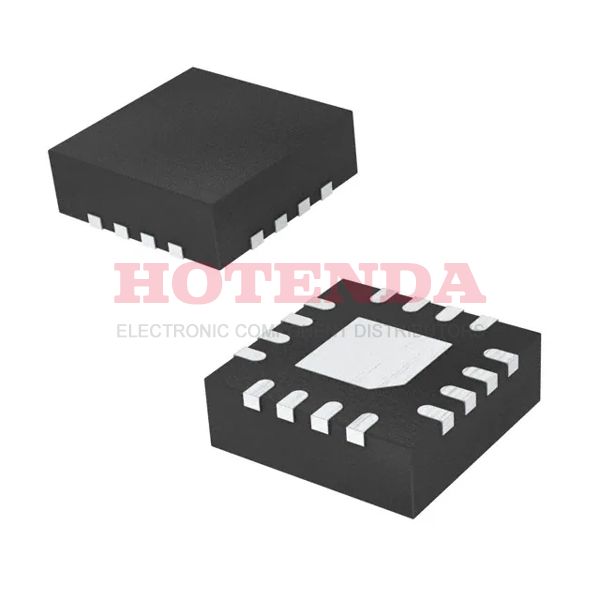

PL565-68QC Overview
Tube-method packaging is used for clock ICs. The 16-WFQFN Exposed Pad package contains this clock generator. It contains 16 terminations that can be found in frequency synthesizer. This electronic frequency generator requires a voltage of 3.3V. The input of this clock generator is designed to be Crystal. To access the full performance of the electronic component, 1 circuits are implemented. There is a maximum frequency of 320MHz Max with this clock-based frequency generator. Thanks to the Surface Mount, this electric component can be conveniently installed on the panel. This clock generator would require a maximum supply voltage of 3.63V. For safety reasons, this frequency synthesizer should have a voltage supply above 2.97V. As far as the supply voltage is concerned, clock PLL can be used with 2.97V~3.63V. Based on the test statistics, an ambient temperature of 0°C~70°C should be set. As the name suggests, this is a clock generator that is compatible with LVPECL logic levels. You can find related electrical components to the base part number PL565. An analog IC, this frequency synthesizer can be classified as a ANALOG MULTIPLIER OR DIVIDER-device. This electronic frequency generator should not be supplied with more than 80mA of current.
PL565-68QC Features
Available in the 16-WFQFN Exposed Pad
Supply voltage of 3.3V
PL565-68QC Applications
There are a lot of Microchip Technology
PL565-68QC Clock Generators applications.
- Automatic test equipment
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
