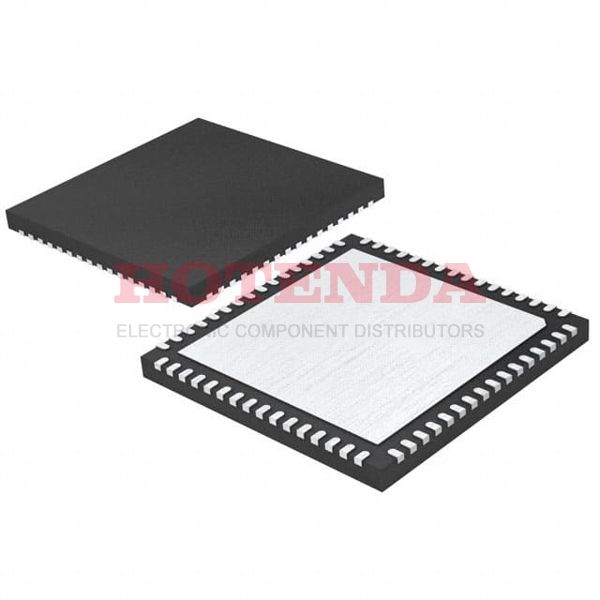

Name: PIC32MX330F064HT-I/MR
Brand: Microchip Technology
SKU: PIC32MX330F064HT-I/MR
Availability: InStock

new-10%

PIC32MX330F064HT-I/MR

Manufacturer part number:PIC32MX330F064HT-I/MR

Manufacturer:Microchip Technology

Description:64KB 64K x 8 FLASH MIPS32® M4K™ 32-Bit Microcontroller PIC® 32MX Series PIC32MX330F064H 3.3V 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC32MX330F064HT-I/MR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	64-QFN (9x9)
Data Converters	A/D 28x10b
Package	Tape & Reel (TR)
Base Product Number	PIC32MX330
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® 32MX
Published	2013
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Base Part Number	PIC32MX330F064H
JESD-30 Code	S-PQCC-N64
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	2.3V
Oscillator Type	Internal
Number of I/O	53
Speed	100MHz
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	2.3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	MIPS32® M4K™
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency	80MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	64KB 64K x 8
Connectivity	I2C, IrDA, LINbus, PMP, SPI, UART/USART
Bit Size	32
Data Converter	A/D 28x10b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	NO
ROM (words)	77824
EEPROM Size	--
On Chip Program ROM Width	8
Screening Level	TS 16949
Length	9mm
Height Seated (Max)	1mm
Width	9mm
RoHS Status	ROHS3 Compliant

PIC32MX330F064HT-I/MR Product Details

PIC32MX330F064HT-I/MR Overview

In a 64-VFQFN Exposed Pad package, the MCU is available. 53 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 32-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. PIC® 32MX series components make up this electrical component. 64KB 64K x 8 is the size of its program memory. A MIPS32® M4K™ Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 64 is the number of terminations on the IC chip that are present. This part works in a 32-bit manner. There is a 3.3V volt supply output on the chip. DMA channels number YES. The base part number PIC32MX330F064H can be used to find alternatives. The device works in YES PWM channels. A 80MHz-clock frequency is used to operate it.
