Name: PIC32MX250F128D-I/TL
Brand: Microchip Technology
SKU: PIC32MX250F128D-I/TL
Availability: InStock

new-10%

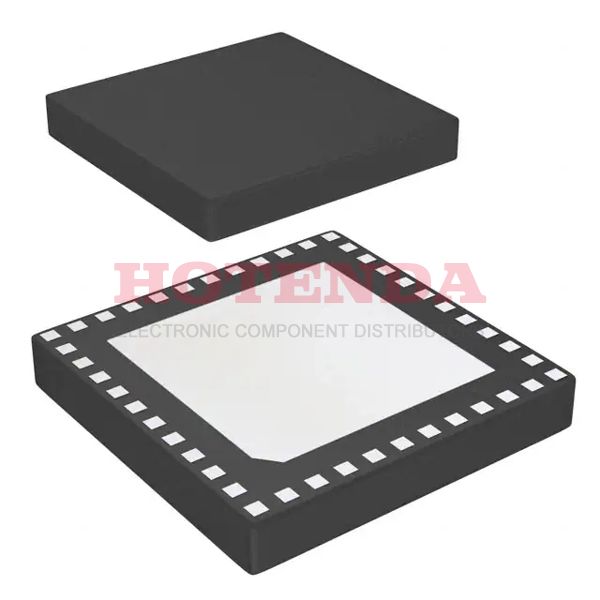

PIC32MX250F128D-I/TL

Manufacturer part number:PIC32MX250F128D-I/TL

Manufacturer:Microchip Technology

Description:128KB 128K x 8 FLASH MIPS32® M4K™ 32-Bit Microcontroller PIC® 32MX Series PIC32MX250F128D 44 Pin 40MHz 3.3V 44-VFTLA Exposed Pad

Case Package:SOT-23

Datasheet:PIC32MX250F128D-I/TL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mounting Type	Surface Mount
Package / Case	44-VFTLA Exposed Pad
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-VTLA (6x6)
Mounting Style	SMD/SMT
Package	Tube
Base Product Number	PIC32MX250
Mfr	Microchip Technology
Data Converters	A/D 13x10b
Product Status	Obsolete
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	MIPS32
RoHS	Details
Schedule B	8542310000
Number of I/Os	33
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® 32MX
Published	2009
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	44
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Terminal Position	QUAD
Supply Voltage	3.3V
Frequency	40MHz
Base Part Number	PIC32MX250F128D
Pin Count	44
Supply Voltage-Max (Vsup)	3.6V
Interface	I2C, I2S, IrDA, LIN, SPI, UART, USART, USB
Max Supply Voltage	3.6 V
Min Supply Voltage	2.3 V
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	33
Speed	40MHz
RAM Size	32K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	2.3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	MIPS32® M4K™
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	128KB 128K x 8
Connectivity	I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG
Supply Current-Max	30mA
Bit Size	32
Data Converter	A/D 13x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
Number of Timers/Counters	5
Address Bus Width	32b
Product Type	32-bit Microcontrollers - MCU
Core Architecture	PIC
EEPROM Size	-
CPU Family	PIC
Max Frequency	40 MHz
Number of Programmable I/O	33
Number of UART Channels	2
Number of ADC Channels	10
Number of PWM Channels	5
Number of I2C Channels	2
Number of SPI Channels	2
Product Category	32-bit Microcontrollers - MCU
Height	925μm
Length	6mm
Width	6mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC32MX250F128D-I/TL Product Details

PIC32MX250F128D-I/TL Overview

44-VFTLA Exposed Pad-packages are available. There are 33 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 32-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the PIC® 32MX series. This program memory has a size of 128KB 128K x 8, which indicates what the size of the program memory is. MIPS32® M4K™ Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 44 terminations on MCU chip. You get a 32-bit size. This Microcontroller chip is powered by 3.3V volts. There are YES DMA channels on this Microcontroller chip. The part has a memory size of 128kB. The base part number PIC32MX250F128D provides alternatives. This device is extremely efficient when operated at a frequency of 40MHz. In this chip, 44 pins can be accessed. Using the timer/counter system, it has 5 timers/counters. It has 44 pins in total. In addition to this, the device is embedded with the the PIC CPU family. There is FLASH memory in this equipment. As a result of its PIC core architecture, it can be used in many applications. This device has 33 programmable input and output channels. With 2 UART channels, it has all the features you may need. In total, it has 10 ADC channels for the measurement of signals. As far as the PWM channel count is concerned, the device makes use of 5 channels. As part of the design, the part has been designed to feature 2 channels for I2C communication.
