Name: PIC24FV16KA301-E/SO
Brand: Microchip Technology
SKU: PIC24FV16KA301-E/SO
Availability: InStock

new-10%

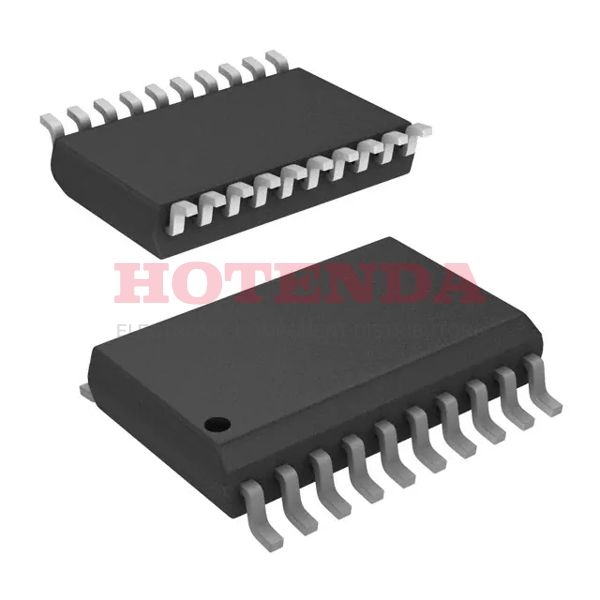

PIC24FV16KA301-E/SO

Manufacturer part number:PIC24FV16KA301-E/SO

Manufacturer:Microchip Technology

Description:16KB 5.5K x 24 FLASH PIC 16-Bit Microcontroller PIC® XLP™ 24F Series PIC24FV16KA301 20 Pin 32MHz 3.3V 20-SOIC (0.295, 7.50mm Width)

Case Package:SOT-23

Datasheet:PIC24FV16KA301-E/SO Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-SOIC (0.295, 7.50mm Width)
Number of Pins	20
Supplier Device Package	20-SOIC
Package	Tube
Base Product Number	PIC24FV16KA301
Mfr	Microchip Technology
Data Converters	A/D 12x12b
Product Status	Obsolete
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	PIC® XLP™ 24F
Published	2012
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
Terminal Position	DUAL
Terminal Form	GULL WING
Supply Voltage	3.3V
Terminal Pitch	1.27mm
Frequency	32MHz
Base Part Number	PIC24FV16KA301
Supply Voltage-Min (Vsup)	2V
Interface	I2C, IrDA, LIN, SPI, UART, USART
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	17
Speed	32MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	2V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	16KB 5.5K x 24
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Bit Size	16
Data Converter	A/D 12x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	5
EEPROM Size	512 x 8
On Chip Program ROM Width	24
Boundary Scan	NO
Low Power Mode	YES
Screening Level	TS-16949
Format	FIXED-POINT
Integrated Cache	NO
Number of External Interrupts	3
On Chip Data RAM Width	16
Time-Min	SECONDS
Length	12.8mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC24FV16KA301-E/SO Product Details

PIC24FV16KA301-E/SO Overview

In a 20-SOIC (0.295, 7.50mm Width) package, the MCU is available. 17 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 16-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~125°C TA that is operated by this Microcontroller. PIC® XLP™ 24F series components make up this electrical component. 16KB 5.5K x 24 is the size of its program memory. A PIC Core processor is used to power the device. This device falls under the MICROCONTROLLER uPs/uCs/Peripheral ICs category. 20 is the number of terminations on the IC chip that are present. This part works in a 16-bit manner. There is a 3.3V volt supply output on the chip. DMA channels number NO. 16kB is the memory size of the part. The base part number PIC24FV16KA301 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 32MHz. The device works in YES PWM channels. Located on the chip are 20 pins. The clock has 5 timers or counters on it. This part contains 3 external interrupts which provide a high level of flexibility.
