Name: PIC24FJ32MC102T-E/ML
Brand: Microchip Technology
SKU: PIC24FJ32MC102T-E/ML
Availability: InStock

new-10%

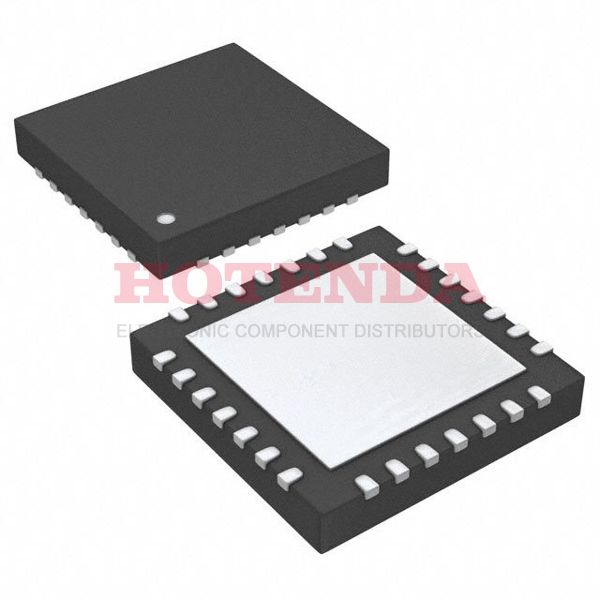

PIC24FJ32MC102T-E/ML

Manufacturer part number:PIC24FJ32MC102T-E/ML

Manufacturer:Microchip Technology

Description:32KB 11K x 24 FLASH PIC 16-Bit Microcontroller Automotive, AEC-Q100, PIC® 24F Series PIC24FJ32MC102 3.3V 28-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC24FJ32MC102T-E/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	28-VQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	28-QFN (6x6)
Data Converters	A/D 8x10b
Package	Tape & Reel (TR)
Base Product Number	PIC24FJ32MC102
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, PIC® 24F
Published	2012
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	3A991.A.2
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC24FJ32MC102
JESD-30 Code	S-PQCC-N28
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3V
Supply Voltage-Min (Vsup)	3V
Interface	I2C, IrDA, LIN, SPI, UART, USART
Oscillator Type	Internal
Number of I/O	21
Speed	16 MIPs
RAM Size	1K x 16
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, Motor Control PWM, POR, PWM, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	32KB 11K x 24
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Bit Size	16
Data Converter	A/D 8x10b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
ROM (words)	32768
EEPROM Size	--
On Chip Program ROM Width	8
CPU Family	PIC
Low Power Mode	YES
External Data Bus Width	16
Integrated Cache	NO
RAM (words)	1024
Number of Timers	5
On Chip Data RAM Width	16
Length	6mm
Height Seated (Max)	1mm
Width	6mm
RoHS Status	ROHS3 Compliant

PIC24FJ32MC102T-E/ML Product Details

PIC24FJ32MC102T-E/ML Overview
