Name: PIC24FJ32GA102-I/SS
Brand: Microchip Technology
SKU: PIC24FJ32GA102-I/SS
Price: 4.01000 USD
Availability: InStock

new-10%

PIC24FJ32GA102-I/SS

Manufacturer part number:PIC24FJ32GA102-I/SS

Manufacturer:Microchip Technology

Description:32KB 11K x 24 FLASH PIC 16-Bit Microcontroller PIC® XLP™ 24F Series PIC24FJ32GA102 28 Pin 32MHz 28-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:PIC24FJ32GA102-I/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Number of Pins	28
Supplier Device Package	28-SSOP
Mounting Style	SMD/SMT
Interfaces	I2C/SPI/UART
Instruction Set Architecture	RISC
Clock Freq	32(MHz)
Operating Temperature Classification	Industrial
Package Type	SSOP
Number of Timers - General Purpose	5
Operating Temp Range	-40C to 85C
# I/Os (Max)	21
Interface Type	I2C/SPI/UART
Total Internal Ram Size	8KB(kB)
Device Core Size	16(b)
Operating Supply Voltage (Max)	3.6(V)
Operating Supply Voltage (Typ)	2.5/3.3(V)
Rad Hardened	No
Operating Supply Voltage (Min)	2(V)
Programmable	Yes
Maximum Expanded Memory Size	12MB
Mounting	Surface Mount
Data Converters	A/D 10x10b
Number of I/Os	21 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Package	Tube
Base Product Number	PIC24FJ32GA102
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® XLP™ 24F
Published	2010
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	28
Terminal Finish	Matte Tin (Sn) - annealed
Terminal Position	DUAL
Terminal Form	GULL WING
Frequency	32MHz
Base Part Number	PIC24FJ32GA102
Pin Count	28
Operating Temperature (Max)	85C
Operating Temperature (Min)	-40C
Interface	I2C, IrDA, SPI, UART, USART
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	21
Speed	32MHz
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	2V~3.6V
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	32KB 11K x 24
Connectivity	I2C, IrDA, SPI, UART/USART
Bit Size	16
Data Converter	A/D 10x10b
Watchdog Timer	Yes
Data Bus Width	16b
Number of Timers/Counters	5
Product Type	16-bit Microcontrollers - MCU
EEPROM Size	--
CPU Family	PIC
Number of ADC Channels	10
Number of I2C Channels	2
Product	MCU
Product Category	16-bit Microcontrollers - MCU
Device Core	PIC
Height	1.85mm
Length	10.5mm
Width	5.6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

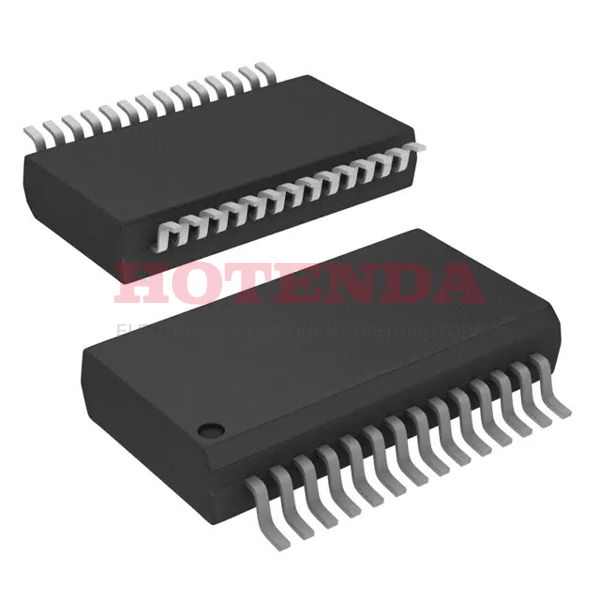

PIC24FJ32GA102-I/SS Product Details

PIC24FJ32GA102-I/SS Overview
