Name: PIC24F16KM204T-I/MV
Brand: Microchip Technology
SKU: PIC24F16KM204T-I/MV
Availability: InStock

new-10%

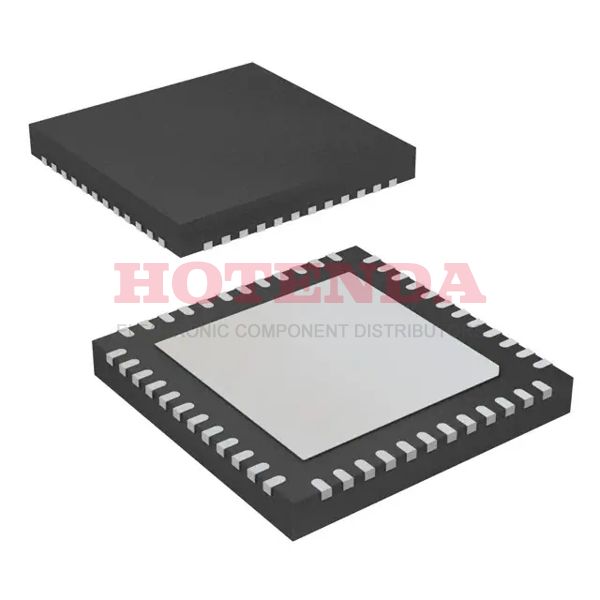

PIC24F16KM204T-I/MV

Manufacturer part number:PIC24F16KM204T-I/MV

Manufacturer:Microchip Technology

Description:16KB 5.5K x 24 FLASH PIC 16-Bit Microcontroller PIC® XLP™ 24F Series PIC24F16KM204 44 Pin 32MHz 3.3V 48-UFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC24F16KM204T-I/MV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	48-UFQFN Exposed Pad
Number of Pins	44
Supplier Device Package	48-UQFN (6x6)
Data Converters	A/D 22x10b/12b, D/A 2x8b
Package	Tape & Reel (TR)
Base Product Number	PIC24F16KM204
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® XLP™ 24F
Published	2013
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	48
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3.3V
Terminal Pitch	0.4mm
Frequency	32MHz
Base Part Number	PIC24F16KM204
JESD-30 Code	S-PQCC-N48
Qualification Status	Not Qualified
Supply Voltage-Min (Vsup)	3V
Interface	I2C, SPI, UART
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	38
Speed	32MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	16KB 5.5K x 24
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Supply Current-Max	10mA
Bit Size	16
Data Converter	A/D 22x10b/12b; D/A 2x8b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	3
ROM (words)	5461
EEPROM Size	512 x 8
On Chip Program ROM Width	24
Low Power Mode	NO
Format	FIXED-POINT
Integrated Cache	NO
RAM (words)	1024
Number of Serial I/Os	2
Number of External Interrupts	3
On Chip Data RAM Width	16
Length	6mm
Height Seated (Max)	0.55mm
Width	6mm
RoHS Status	ROHS3 Compliant

PIC24F16KM204T-I/MV Product Details

PIC24F16KM204T-I/MV Overview

48-UFQFN Exposed Pad-packages are available. There are 38 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 16-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the PIC® XLP™ 24F series. This program memory has a size of 16KB 5.5K x 24, which indicates what the size of the program memory is. PIC Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 48 terminations on MCU chip. You get a 16-bit size. This Microcontroller chip is powered by 3.3V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 16kB. The base part number PIC24F16KM204 provides alternatives. This device is extremely efficient when operated at a frequency of 32MHz. Using the PWM channel YES, the device works with the motor. In this chip, 44 pins can be accessed. Using the timer/counter system, it has 3 timers/counters. MCU chip is equipped with 2 serial I/Os in the part. In this part, there are 3 interrupts that are external to the system.
