Name: PIC24F16KM102-I/ML
Brand: Microchip Technology
SKU: PIC24F16KM102-I/ML
Availability: InStock

new-10%

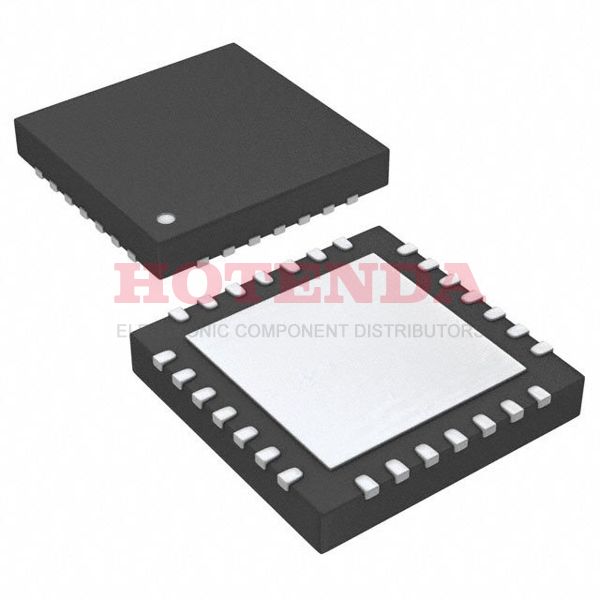

PIC24F16KM102-I/ML

Manufacturer part number:PIC24F16KM102-I/ML

Manufacturer:Microchip Technology

Description:16KB 5.5K x 24 FLASH PIC 16-Bit Microcontroller PIC® XLP™ 24F Series PIC24F16KM102 28 Pin 32MHz 3.3V 28-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC24F16KM102-I/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mounting Type	Surface Mount
Package / Case	28-VQFN Exposed Pad
Surface Mount	YES
Number of Pins	28
Supplier Device Package	28-QFN (6x6)
Number of I/Os	24
RoHS	Compliant
Package	Tube
Base Product Number	PIC24F16KM102
Mfr	Microchip Technology
Data Converters	A/D 19x10b/12b
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® XLP™ 24F
Published	2013
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Frequency	32MHz
Base Part Number	PIC24F16KM102
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	2/3.3V
Interface	I2C, IrDA, LIN, SPI, UART, USART
Max Supply Voltage	3.6 V
Min Supply Voltage	1.8 V
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	24
Speed	32MHz
RAM Size	1K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	16KB 5.5K x 24
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Bit Size	16
Data Converter	A/D 19x10b/12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	16b
PWM Channels	YES
Number of Timers/Counters	1
Core Architecture	PIC
EEPROM Size	512 x 8
On Chip Program ROM Width	24
Max Frequency	32 MHz
Low Power Mode	NO
Format	FIXED-POINT
Integrated Cache	NO
RAM (words)	512
Number of ADC Channels	19
Number of Serial I/Os	1
Number of External Interrupts	3
On Chip Data RAM Width	16
Length	6mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC24F16KM102-I/ML Product Details

PIC24F16KM102-I/ML Overview

There is a 28-VQFN Exposed Pad package available. The board has 24 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 16-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. PIC® XLP™ 24F-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 16KB 5.5K x 24. Powered by a PIC Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 28. As a result, this Microcontroller comes with a 16-bit size. Input voltage for the chip is 3.3V volts. A total of NO DMA channels are available. This IC part has a memory size of 16kB. There are a number of alternatives to the base part number PIC24F16KM102 that you can find. Performing well when operated at frequency 32MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 28 pins that can be accessed. It comes with 1 timers/counters that can be set up. FLASH memory is one of the features of this equipment. The CPU is based on PIC cores. The device has a total of 19 ADC channels in total. It contains 1 serial input/output interfaces on the board. The part contains 3 interrupts external to the system.
