Name: PIC18LF4525T-I/ML
Brand: Microchip Technology
SKU: PIC18LF4525T-I/ML
Price: 9.06000 USD
Availability: InStock

new

PIC18LF4525T-I/ML

Manufacturer part number:PIC18LF4525T-I/ML

Manufacturer:Microchip Technology

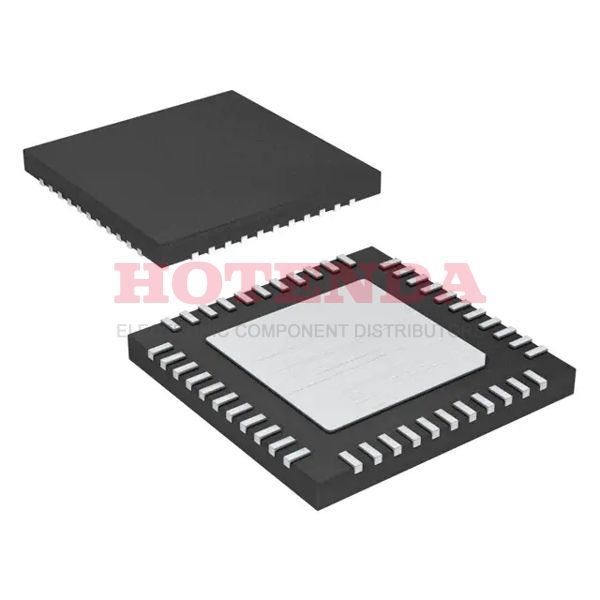

Description:48KB 24K x 16 FLASH PIC 8-Bit Microcontroller PIC® 18F Series PIC18LF4525 44 Pin 40MHz 5V 44-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC18LF4525T-I/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-VQFN Exposed Pad
Number of Pins	44
Supplier Device Package	44-QFN (8x8)
Mounting Style	SMD/SMT
Interfaces	SPI/I2C/USART
Data Converters	A/D 13x10b
RoHS	Details
Tradename	PIC
Brand	Microchip Technology
Manufacturer	Microchip
Interface Type	EUSART, I2C, SPI
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Number of I/Os	36 I/O
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® 18F
Published	2006
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	44
ECCN Code	3A991.A.2
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	1W
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.65mm
Frequency	40MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC18LF4525
Pin Count	44
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2.5/5V
Interface	I2C, SPI, UART, USART
Memory Size	48kB
Oscillator Type	Internal
Number of I/O	36
Speed	40MHz
RAM Size	3.8K x 8
Voltage - Supply (Vcc/Vdd)	2V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	48KB 24K x 16
Connectivity	I2C, SPI, UART/USART
Supply Current-Max	25mA
Bit Size	8
Data Converter	A/D 13x10b
Watchdog Timer	Yes
Access Time	40 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	4
Product Type	8-bit Microcontrollers - MCU
EEPROM Size	1K x 8
On Chip Program ROM Width	16
CPU Family	PIC
Number of ADC Channels	13 Channel
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Length	8mm
Height Seated (Max)	1mm
Height	0.88 mm
Width	8 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC18LF4525T-I/ML Product Details

PIC18LF4525T-I/ML Overview

There is a 44-VQFN Exposed Pad package available. The board has 36 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. PIC® 18F-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 48KB 24K x 16. Powered by a PIC Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 44. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 5V volts. A total of NO DMA channels are available. This IC part has a memory size of 48kB. There are a number of alternatives to the base part number PIC18LF4525 that you can find. Performing well when operated at frequency 40MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 44 pins that can be accessed. It comes with 4 timers/counters that can be set up. The pins counted are 44. The device is powered by the the PIC CPU family that is embedded in it. The device has a total of 13 Channel ADC channels in total.
