Name: PIC18F96J65-I/PT
Brand: Microchip Technology
SKU: PIC18F96J65-I/PT
Availability: InStock

new-10%

PIC18F96J65-I/PT

Manufacturer part number:PIC18F96J65-I/PT

Manufacturer:Microchip Technology

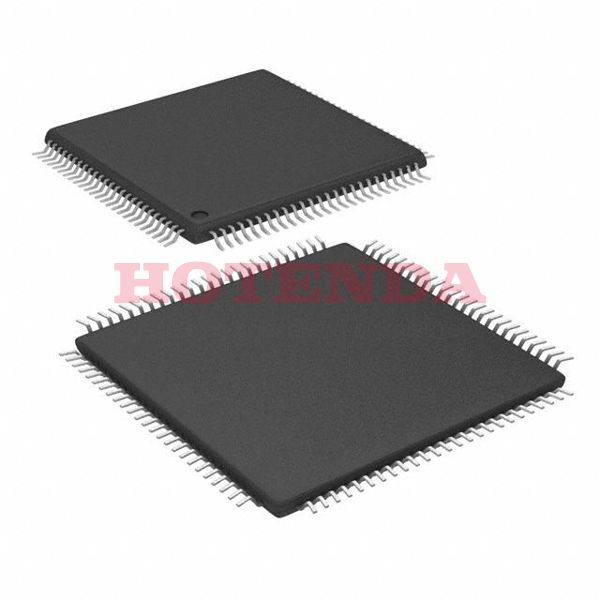

Description:96KB 48K x 16 FLASH PIC 8-Bit Microcontroller PIC® 18J Series PIC18F96J65 100 Pin 41.667MHz 3V 100-TQFP

Case Package:SOT-23

Datasheet:PIC18F96J65-I/PT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-TQFP
Number of Pins	100
Supplier Device Package	100-TQFP (12x12)
Mounting Style	SMD/SMT
Interfaces	Ethernet/I2C/SPI/USA
Number of I/Os	70 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	Display Driver, EUSART, Ethernet, I2C, MSSP, SPI
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Package	Tray
Base Product Number	PIC18F96
Mfr	Microchip Technology
Data Converters	A/D 16x10b
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	PIC® 18J
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Max Power Dissipation	1W
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3V
Terminal Pitch	0.4mm
Frequency	41.667MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC18F96J65
Pin Count	100
Operating Supply Voltage	3.6V
Interface	EBI/EMI, Ethernet, I2C, SPI, UART, USART
Max Supply Voltage	3.9 V
Min Supply Voltage	2 V
Memory Size	96kB
Oscillator Type	Internal
Number of I/O	70
Speed	41.667MHz
RAM Size	3808 x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	2V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Number of Bits	8
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	96KB 48K x 16
Connectivity	EBI/EMI, Ethernet, I2C, SPI, UART/USART
Bit Size	16
Data Converter	A/D 16x10b
Access Time	42 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
Number of Timers/Counters	5
Product Type	8-bit Microcontrollers - MCU
Density	768 kb
Core Architecture	PIC
EEPROM Size	-
CPU Family	PIC
Max Frequency	41.667 MHz
Number of A/D Converters	1
Number of Programmable I/O	70
Number of UART Channels	2
Number of ADC Channels	16
Number of PWM Channels	14
Number of I2C Channels	2
Number of SPI Channels	2
Product	MCU
Number of Ethernet Channels	1
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Height	1.05mm
Length	12mm
Width	12mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC18F96J65-I/PT Product Details

PIC18F96J65-I/PT Overview

It comes in a 100-TQFP package. It has a number of 70I/Os. The Mounting Type of the device is Surface Mount. It is based on the 8-Bit. The It?ˉs Program Memory Type is FLASH. The device runs in -40??C~85??C TA Operating Temperature. It runs in PIC? 18J Series.

PIC18F96J65-I/PT Features

PIC? 18J series
Base part number of PIC18F96J65
2 I2C channels
100 Terminals
Based on the 8-Bit
Comes with 100 Pins

PIC18F96J65-I/PT Applications

There are a lot of Microchip Technology PIC18F96J65-I/PT Microcontroller applications. PIC18F96J65-I/PT MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.
