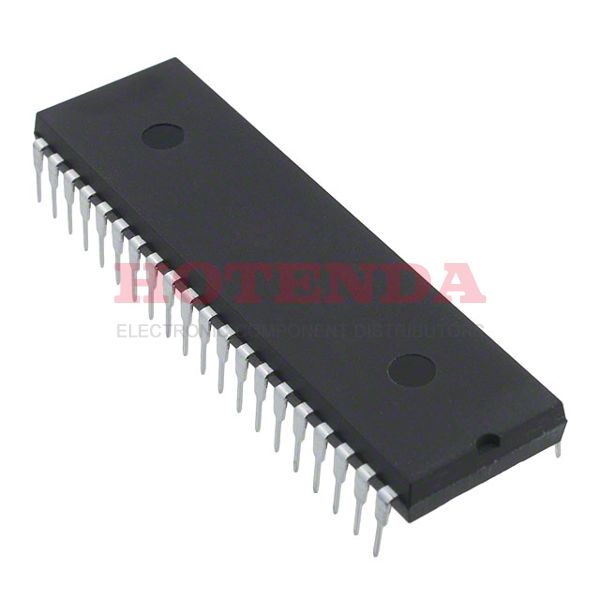

PIC18F4525-E/P Overview
The package has a 40-DIP (0.600, 15.24mm) shape. With 36 I/Os, it's pretty good. The Microcontroller's mounting type is Through Hole and this IC chip has the following features. As the name implies, this Microcontroller is based on the 8-Bit core. As far as its program memory type is concerned, it is FLASH. Temperatures within -40°C~125°C TA range are measured by this Microcontroller. The PIC® 18F series is comprised of this electrical component. The electronic part has a program memory size of 48KB 24K x 16. There's a PIC Core Processor inside. The IC chip fits into the MICROCONTROLLER uPs/uCs/Peripheral ICs category. There are 40 terminations on the IC chip. 8-bits are the size of the data that comes with MCU. A 5V volt supply is provided by the Microcontroller chip. In addition to that, MCU chip has NO DMA channels. Its memory size is 48kB. It is possible to find alternatives to the base part number PIC18F4525 by using the part number search tool. An effective performance can be achieved at a frequency of 40MHz. It is possible to access the 40 pins on the chip. In total, it has 4 timers and counters in it. A total of 40 pins are included in the package. There are several CPUs that are embedded in the device, including the the PIC CPU. The ADC channels on this device total 13 in number. A total of 2 PWM channels are being used by the device. The part has been designed to incorporate 1 I2C channels.
PIC18F4525-E/P Features
40-DIP (0.600, 15.24mm) package
Mounting type of Through Hole
PIC18F4525-E/P Applications
There are a lot of Microchip Technology
PIC18F4525-E/P Microcontroller applications.
- Robots
- Radio
- Television
- Heater/Fan
- Calculator
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
