Name: PIC17LC756AT-08I/L
Brand: Microchip Technology
SKU: PIC17LC756AT-08I/L
Availability: InStock

new-10%

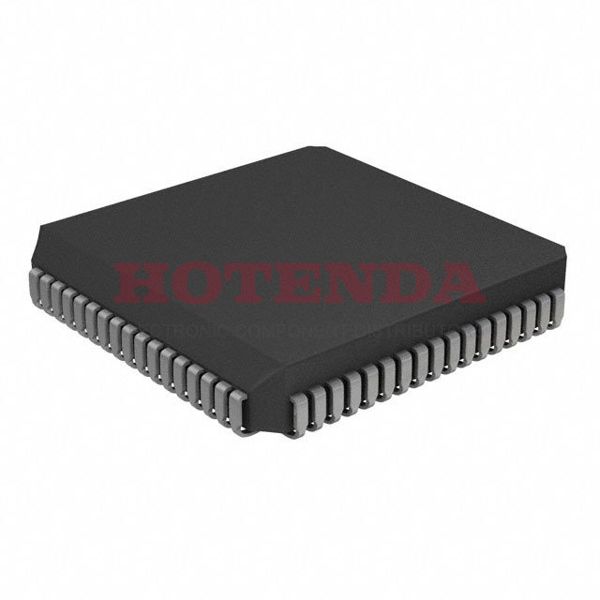

PIC17LC756AT-08I/L

Manufacturer part number:PIC17LC756AT-08I/L

Manufacturer:Microchip Technology

Description:32KB 16K x 16 OTP PIC 8-Bit Microcontroller PIC® 17C Series PIC17LC756A 68 Pin 8MHz 5V 68-LCC (J-Lead)

Case Package:SOT-23

Datasheet:PIC17LC756AT-08I/L Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	68-LCC (J-Lead)
Surface Mount	YES
Number of Pins	68
Supplier Device Package	68-PLCC (24.23x24.23)
Data Converters	A/D 12x10b
Package	Tape & Reel (TR)
Base Product Number	PIC17LC756
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® 17C
Published	2000
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	68
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	1W
Terminal Position	QUAD
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	245
Supply Voltage	5V
Terminal Pitch	1.27mm
Frequency	8MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC17LC756A
Pin Count	68
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	3V
Interface	I2C, RS-232, SCI, SPI, UART, USART
Memory Size	16kB
Oscillator Type	External
Number of I/O	50
Speed	8MHz
RAM Size	902 x 8
Memory Type	EPROM
Voltage - Supply (Vcc/Vdd)	3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	32KB 16K x 16
Connectivity	I2C, SPI, UART/USART
Bit Size	8
Data Converter	A/D 12x10b
Watchdog Timer	Yes
Access Time	8 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	8
Address Bus Width	16
EEPROM Size	--
On Chip Program ROM Width	16
Length	24.23mm
Height Seated (Max)	4.57mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC17LC756AT-08I/L Product Details

PIC17LC756AT-08I/L Overview

This Microcontroller comes in a 68-LCC (J-Lead) package. This Microcontroller has 50 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is OTP. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in PIC® 17C Series. The size of the program memory of Microcontroller is 32KB 16K x 16. MCU is powered by PIC Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 68 terminals. Microcontroller comes with 8 bit size. The component always operates in 5V supply voltage. MCU chip has NO DMA channels. The part owns 16kB memory size. You can find alternatives through the base part number PIC17LC756A. MCU's frequency is 8MHz. The device works in YES PWM channels. The pin number of the component remains 68. It has 8 timers/counters. It counts 68 pins. This equipment features EPROM memory.
