Name: PIC17C42A/JW
Brand: Microchip Technology
SKU: PIC17C42A/JW
Availability: InStock

new-10%

PIC17C42A/JW

Manufacturer part number:PIC17C42A/JW

Manufacturer:Microchip Technology

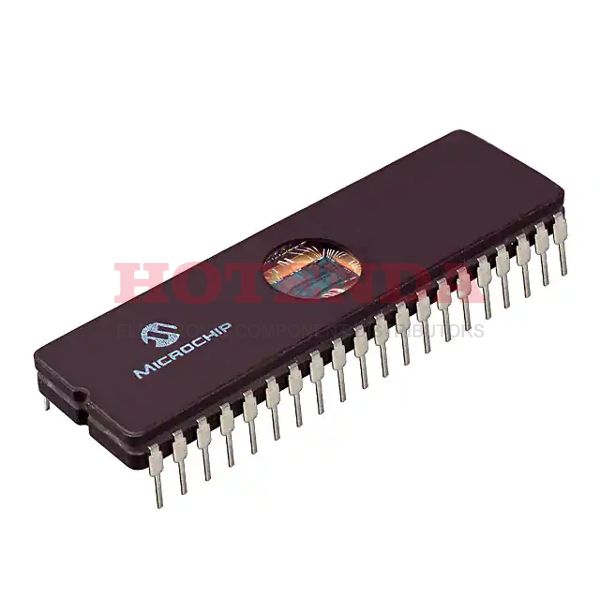

Description:4KB 2K x 16 EPROM, UV PIC 8-Bit Microcontroller PIC® 17C Series PIC17C42A 40 Pin 33MHz 5V 40-CDIP (0.600, 15.24mm) Window

Case Package:SOT-23

Datasheet:PIC17C42A/JW Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	40-CDIP (0.600, 15.24mm) Window
Number of Pins	40
Supplier Device Package	40-Cerdip
Data Converters	--
Package	Tube
Base Product Number	PIC17C42
Mfr	Microchip Technology
Product Status	Obsolete
RoHS	Compliant
Number of I/Os	33
Operating Temperature	0°C~70°C TA
Packaging	Tube
Published	1996
Series	PIC® 17C
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	40
ECCN Code	3A991.A.2
Terminal Finish	MATTE TIN
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Max Power Dissipation	1W
Terminal Position	DUAL
Supply Voltage	5V
Frequency	33MHz
Base Part Number	PIC17C42A
Pin Count	40
Operating Supply Voltage	5V
Supply Voltage-Max (Vsup)	6V
Power Supplies	5V
Interface	SCI, UART, USART
Max Supply Voltage	6 V
Min Supply Voltage	4.5 V
Memory Size	2kB
Oscillator Type	External
Number of I/O	33
Speed	33MHz
RAM Size	232 x 8
Memory Type	EPROM
Voltage - Supply (Vcc/Vdd)	4.5V~6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	POR, PWM, WDT
Program Memory Type	EPROM, UV
Core Size	8-Bit
Program Memory Size	4KB 2K x 16
Connectivity	UART/USART
Supply Current-Max	50mA
Bit Size	8
Watchdog Timer	Yes
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	4
Address Bus Width	16
Core Architecture	PIC
EEPROM Size	--
On Chip Program ROM Width	16
CPU Family	PIC
Max Frequency	33 MHz
Number of Programmable I/O	33
ROM Programmability	UVPROM
Length	52.07mm
Height Seated (Max)	5.715mm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

PIC17C42A/JW Product Details

PIC17C42A/JW Overview

Packaged in a 40-CDIP (0.600, 15.24mm) Window format, this MCU is available in a compact size. There are 33 I/Os on the Microcontroller. It is important to note that the Microcontroller has a Through Hole mounting type. 8-Bit core is the basis for this Microcontroller. This program has a type of memory called EPROM, UV for this MCU's program memory. Temperatures in this range are operated by this Microcontroller. The PIC® 17C series includes this electrical component. There is 4KB 2K x 16 bytes of program memory in MCU, which corresponds to the size of the program. With a PIC Core processor, MCU is equipped with the latest technology available. This is a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. During the manufacturing process, 40 terminations were applied to the IC chip. 8-bits are used in Microcontroller. The MCU chip's supply output is 5V volts. Currently, MCU chip has NO DMA channels. 2kB memory size belongs to the Chip part. Alternatives can be found by looking at the base part number PIC17C42A. In the case of 33MHz frequency operation, it can perform efficiently. There are YES PWM channels on the device. The chip has 40 pins. The clock has 4 timers/counters to keep track of the time. 40 pins are counted on this board. This device is embedded with a PIC processor family, which is a powerful and efficient CPU. There is a EPROM memory feature on this equipment. With PIC core architecture, it offers high performance. A total of 33 programmable I/Os are available on this board.
