Name: PIC16LF874-04I/P
Brand: Microchip Technology
SKU: PIC16LF874-04I/P
Availability: InStock

new-10%

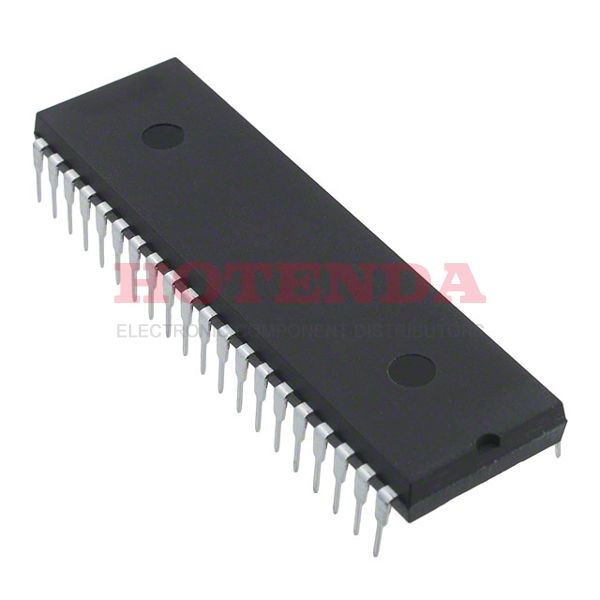

PIC16LF874-04I/P

Manufacturer part number:PIC16LF874-04I/P

Manufacturer:Microchip Technology

Description:7KB 4K x 14 FLASH PIC 8-Bit Microcontroller PIC® 16F Series PIC16LF874 40 Pin 4MHz 5V 40-DIP (0.600, 15.24mm)

Case Package:SOT-23

Datasheet:PIC16LF874-04I/P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mounting Type	Through Hole
Package / Case	40-DIP (0.600, 15.24mm)
Surface Mount	NO
Number of Pins	40
Supplier Device Package	40-PDIP
Interfaces	I2C/SPI/USART
Package	Tube
Base Product Number	PIC16LF874
Mfr	Microchip Technology
Data Converters	A/D 8x10b
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® 16F
Published	2001
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	40
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	1W
Terminal Position	DUAL
Supply Voltage	5V
Terminal Pitch	2.54mm
Frequency	4MHz
Base Part Number	PIC16LF874
Pin Count	40
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2.5/5V
Supply Voltage-Min (Vsup)	2V
Interface	I2C, SPI, UART, USART
Memory Size	7kB
Oscillator Type	External
Number of I/O	33
Speed	4MHz
RAM Size	192 x 8
Voltage - Supply (Vcc/Vdd)	2V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	7KB 4K x 14
Connectivity	I2C, SPI, UART/USART
Supply Current-Max	2mA
Bit Size	8
Data Converter	A/D 8x10b
Watchdog Timer	Yes
Access Time	4 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
EEPROM Size	128 x 8
On Chip Program ROM Width	14
CPU Family	PIC
Device Core	PIC
Length	52.26mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC16LF874-04I/P Product Details

PIC16LF874-04I/P Overview

40-DIP (0.600, 15.24mm)-packages are available. There are 33 I/O ports on this device. Device mounting type Through Hole is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the PIC® 16F series. This program memory has a size of 7KB 4K x 14, which indicates what the size of the program memory is. PIC Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 40 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 5V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 7kB. The base part number PIC16LF874 provides alternatives. This device is extremely efficient when operated at a frequency of 4MHz. Using the PWM channel YES, the device works with the motor. In this chip, 40 pins can be accessed. Using the timer/counter system, it has 3 timers/counters. It has 40 pins in total. In addition to this, the device is embedded with the the PIC CPU family.
