Name: PIC16LF724-E/MV
Brand: Microchip Technology
SKU: PIC16LF724-E/MV
Availability: InStock

new-10%

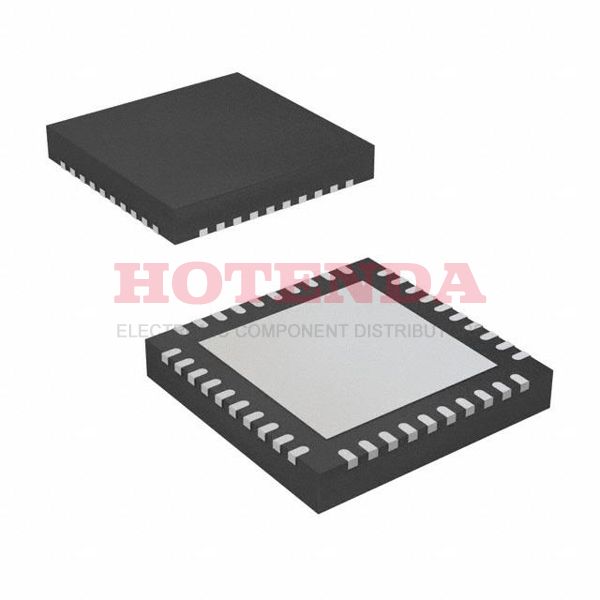

PIC16LF724-E/MV

Manufacturer part number:PIC16LF724-E/MV

Manufacturer:Microchip Technology

Description:7KB 4K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 16F Series PIC16LF724 40 Pin 20MHz 40-UFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC16LF724-E/MV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	40-UFQFN Exposed Pad
Number of Pins	40
Supplier Device Package	40-UQFN (5x5)
Interfaces	I2C/SPI/USART
Package	Tube
Base Product Number	PIC16LF724
Mfr	Microchip Technology
Data Converters	A/D 14x8b
Product Status	Active
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	PIC® XLP™ 16F
Published	2009
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Power Dissipation	800mW
Frequency	20MHz
Base Part Number	PIC16LF724
Interface	I2C, SPI, UART, USART
Max Supply Voltage	3.6V
Min Supply Voltage	2.3V
Memory Size	7kB
Oscillator Type	Internal
Number of I/O	36
Speed	20MHz
RAM Size	192 x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	7KB 4K x 14
Connectivity	I2C, SPI, UART/USART
Data Converter	A/D 14x8b
Watchdog Timer	Yes
Data Bus Width	8b
Number of Timers/Counters	3
Core Architecture	PIC
EEPROM Size	-
Max Frequency	20MHz
Number of Programmable I/O	36
Device Core	PIC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC16LF724-E/MV Product Details

PIC16LF724-E/MV Overview

This Microcontroller comes in a 40-UFQFN Exposed Pad package. This Microcontroller has 36 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in PIC® XLP™ 16F Series. The size of the program memory of Microcontroller is 7KB 4K x 14. MCU is powered by PIC Core Processor. The part owns 7kB memory size. You can find alternatives through the base part number PIC16LF724. MCU's frequency is 20MHz. The pin number of the component remains 40. It has 3 timers/counters. This equipment features FLASH memory. It has a PIC core architecture integrated into it. It programs in 36 Programmable I/O.
