Name: PIC16LF1938-E/SS
Brand: Microchip Technology
SKU: PIC16LF1938-E/SS
Availability: InStock

new-10%

PIC16LF1938-E/SS

Manufacturer part number:PIC16LF1938-E/SS

Manufacturer:Microchip Technology

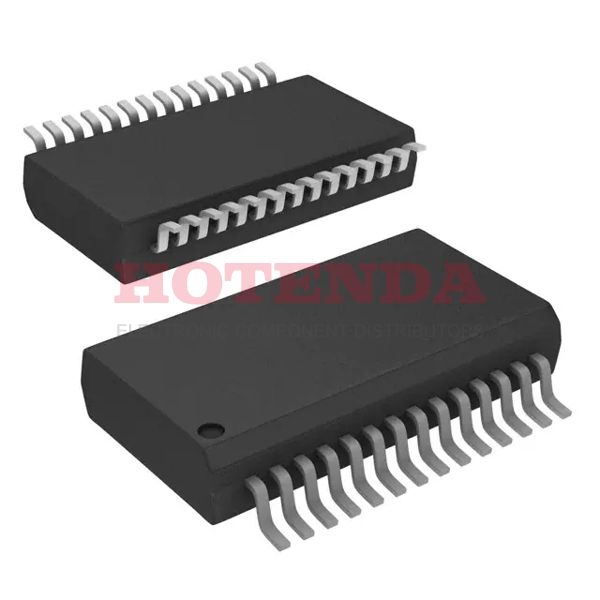

Description:28KB 16K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 16F Series PIC16LF1938 28 Pin 32MHz 3.3V 28-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:PIC16LF1938-E/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Surface Mount	YES
Number of Pins	28
Supplier Device Package	28-SSOP
Interfaces	I2C/SPI/USART
Data Converters	A/D 11x10b
Package	Tube
Base Product Number	PIC16LF1938
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	PIC® XLP™ 16F
Published	2009
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	3A991.A.2
Terminal Finish	Matte Tin (Sn)
Additional Feature	ALSO OPERATES AT 1.8V MINIMUM SUPPLY FOR 16 MHZ
Max Power Dissipation	800mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Frequency	32MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16LF1938
Pin Count	28
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	2/3.3V
Interface	I2C, LIN, SPI, UART, USART
Memory Size	28kB
Oscillator Type	Internal
Number of I/O	25
Speed	32MHz
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, LCD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	28KB 16K x 14
Connectivity	I2C, LINbus, SPI, UART/USART
Supply Current-Max	8mA
Bit Size	8
Data Converter	A/D 11x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	5
ROM (words)	16384
EEPROM Size	256 x 8
On Chip Program ROM Width	14
CPU Family	PIC
Device Core	PIC
Length	10.2mm
Height Seated (Max)	2mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC16LF1938-E/SS Product Details

PIC16LF1938-E/SS Overview

It comes in a 28-SSOP (0.209, 5.30mm Width) package. It has a number of 25I/Os. The Mounting Type of the device is Surface Mount. It is based on the 8-Bit. The It?ˉs Program Memory Type is FLASH. The device runs in -40??C~125??C TA Operating Temperature. It runs in PIC? XLP? 16F Series.

PIC16LF1938-E/SS Features

PIC? XLP? 16F series
Base part number of PIC16LF1938
Additional features of ALSO OPERATES AT 1.8V MINIMUM SUPPLY FOR 16 MHZ
28 Terminals
Based on the 8-Bit
Comes with 28 Pins

PIC16LF1938-E/SS Applications

There are a lot of Microchip Technology PIC16LF1938-E/SS Microcontroller applications. PIC16LF1938-E/SS MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.
