Name: PIC16LF1937-E/PT
Brand: Microchip Technology
SKU: PIC16LF1937-E/PT
Availability: InStock

new-10%

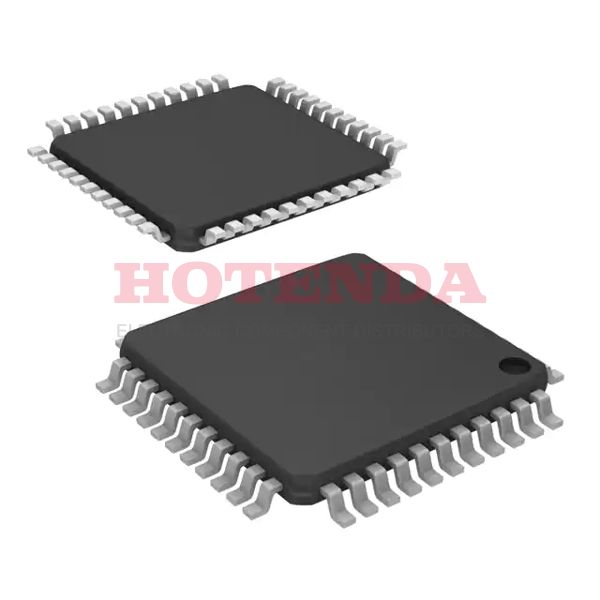

PIC16LF1937-E/PT

Manufacturer part number:PIC16LF1937-E/PT

Manufacturer:Microchip Technology

Description:14KB 8K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 16F Series PIC16LF1937 44 Pin 32MHz 3.3V 44-TQFP

Case Package:SOT-23

Datasheet:PIC16LF1937-E/PT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-TQFP
Number of Pins	44
Supplier Device Package	44-TQFP (10x10)
Interfaces	I2C/SPI/USART
Package	Tray
Base Product Number	PIC16LF1937
Mfr	Microchip Technology
Data Converters	A/D 14x10b
Product Status	Active
Operating Temperature	-40°C~125°C TA
Packaging	Tray
Series	PIC® XLP™ 16F
Published	2010
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
ECCN Code	3A991.A.2
Terminal Finish	Matte Tin (Sn)
Additional Feature	ALSO OPERATES AT 1.8V MINIMUM SUPPLY FOR 16 MHZ
Max Power Dissipation	800mW
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.8mm
Frequency	32MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16LF1937
Pin Count	44
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	2/3.3V
Supply Voltage-Min (Vsup)	2.3V
Interface	I2C, LIN, SPI, UART, USART
Memory Size	14kB
Oscillator Type	Internal
Number of I/O	36
Speed	32MHz
RAM Size	512 x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, LCD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	14KB 8K x 14
Connectivity	I2C, LINbus, SPI, UART/USART
Supply Current-Max	8mA
Bit Size	8
Data Converter	A/D 14x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	5
ROM (words)	8192
EEPROM Size	256 x 8
On Chip Program ROM Width	14
CPU Family	PIC
Number of Programmable I/O	35
Device Core	PIC
Length	10mm
Height Seated (Max)	1.2mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC16LF1937-E/PT Product Details

PIC16LF1937-E/PT Overview

It comes in a 44-TQFP package. It has a number of 36I/Os. The Mounting Type of the device is Surface Mount. It is based on the 8-Bit. The It?ˉs Program Memory Type is FLASH. The device runs in -40??C~125??C TA Operating Temperature. It runs in PIC? XLP? 16F Series.

PIC16LF1937-E/PT Features

PIC? XLP? 16F series
Base part number of PIC16LF1937
Additional features of ALSO OPERATES AT 1.8V MINIMUM SUPPLY FOR 16 MHZ
44 Terminals
Based on the 8-Bit
Comes with 44 Pins

PIC16LF1937-E/PT Applications

There are a lot of Microchip Technology PIC16LF1937-E/PT Microcontroller applications. PIC16LF1937-E/PT MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.
