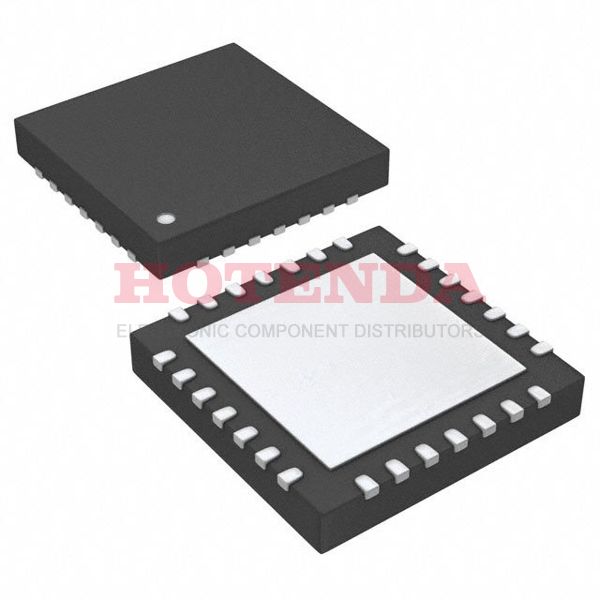

Name: PIC16LF1827-E/ML
Brand: Microchip Technology
SKU: PIC16LF1827-E/ML
Availability: InStock

new-10%

PIC16LF1827-E/ML

Manufacturer part number:PIC16LF1827-E/ML

Manufacturer:Microchip Technology

Description:7KB 4K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ mTouch™ 16F Series PIC16LF1827 28 Pin 32MHz 3V 28-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC16LF1827-E/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Mounting Type	Surface Mount
Package / Case	28-VQFN Exposed Pad
Surface Mount	YES
Number of Pins	28
Supplier Device Package	28-QFN (6x6)
Interfaces	I2C/SPI/USART
Package	Tube
Base Product Number	PIC16LF1827
Mfr	Microchip Technology
Data Converters	A/D 12x10b
Product Status	Active
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	PIC® XLP™ mTouch™ 16F
Published	2008
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	800mW
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	3V
Frequency	32MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16LF1827
Pin Count	28
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.6V
Interface	I2C, SPI, UART, USART
Memory Size	7kB
Oscillator Type	Internal
Number of I/O	16
Speed	32MHz
RAM Size	384 x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Number of Bits	8
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	7KB 4K x 14
Connectivity	I2C, SPI, UART/USART
Bit Size	8
Data Converter	A/D 12x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
Number of Timers/Counters	5
ROM (words)	4096
EEPROM Size	256 x 8
CPU Family	PIC
Number of ADC Channels	12
Number of SPI Channels	1
Device Core	PIC
Height	950μm
Length	6mm
Width	6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC16LF1827-E/ML Product Details

PIC16LF1827-E/ML Overview

28-VQFN Exposed Pad-packages are available. There are 16 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~125°C TA for this Microcontroller. An electrical component of this type belongs to the PIC® XLP™ mTouch™ 16F series. This program memory has a size of 7KB 4K x 14, which indicates what the size of the program memory is. PIC Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 28 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 3V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 7kB. The base part number PIC16LF1827 provides alternatives. This device is extremely efficient when operated at a frequency of 32MHz. Using the PWM channel YES, the device works with the motor. In this chip, 28 pins can be accessed. Using the timer/counter system, it has 5 timers/counters. It has 28 pins in total. In addition to this, the device is embedded with the the PIC CPU family. In total, it has 12 ADC channels for the measurement of signals. There are 8 bits on a chip.
