Name: PIC16LF1823-I/P
Brand: Microchip Technology
SKU: PIC16LF1823-I/P
Price: 1.81000 USD
Availability: InStock

new-10%

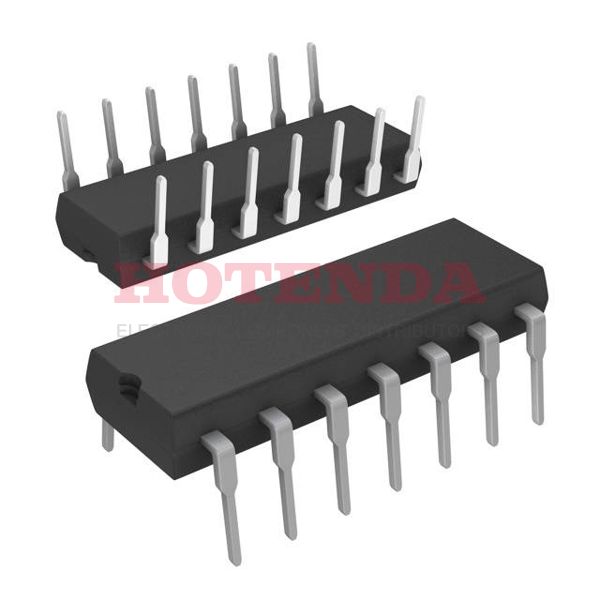

PIC16LF1823-I/P

Manufacturer part number:PIC16LF1823-I/P

Manufacturer:Microchip Technology

Description:3.5KB 2K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 16F Series PIC16LF1823 14 Pin 32MHz 2.3V 14-DIP (0.300, 7.62mm)

Case Package:SOT-23

Datasheet:PIC16LF1823-I/P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Mounting Type	Through Hole
Package / Case	14-DIP (0.300, 7.62mm)
Surface Mount	NO
Number of Pins	14
Supplier Device Package	14-PDIP
Mounting Style	Through Hole
Interfaces	I2C/SPI/USART
Instruction Set Architecture	RISC
Clock Freq	32(MHz)
Operating Temperature Classification	Industrial
Package Type	PDIP
Number of Timers - General Purpose	3
Operating Temp Range	-40C to 85C
# I/Os (Max)	12
Power Dissipation (Max)	800(mW)
Interface Type	I2C/SPI/USART
Total Internal Ram Size	128B(kB)
Device Core Size	8(b)
Operating Supply Voltage (Max)	3.6(V)
Operating Supply Voltage (Typ)	2.5/3.3(V)
Rad Hardened	No
Operating Supply Voltage (Min)	2.3(V)
Programmable	Yes
Maximum Expanded Memory Size	56KB
Mounting	Through Hole
Package	Tube
Base Product Number	PIC16LF1823
Mfr	Microchip Technology
Data Converters	A/D 8x10b
Product Status	Active
Number of I/Os	12 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® XLP™ 16F
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	800mW
Terminal Position	DUAL
Supply Voltage	2.3V
Terminal Pitch	2.54mm
Frequency	32MHz
Base Part Number	PIC16LF1823
Pin Count	8
JESD-30 Code	R-PDIP-T8
Operating Temperature (Max)	85C
Operating Temperature (Min)	-40C
Supply Voltage-Min (Vsup)	1.8V
Interface	I2C, LIN, SPI, UART, USART
Memory Size	3.5kB
Oscillator Type	Internal
Number of I/O	12
Speed	32MHz
RAM Size	128 x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	3.5KB 2K x 14
Connectivity	I2C, LINbus, SPI, UART/USART
Bit Size	8
Data Converter	A/D 8x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	YES
Number of Timers/Counters	3
Product Type	8-bit Microcontrollers - MCU
ROM (words)	2048
EEPROM Size	256 x 8
On Chip Program ROM Width	14
CPU Family	PIC
Number of ADC Channels	8 Channel
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Length	19.05mm
Width	6.35 mm
Height	3.3 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16LF1823-I/P Product Details

PIC16LF1823-I/P Overview

The package is 14-DIP (0.300, 7.62mm)-shaped. There are 12 I/Os. In the case of the IC chip, the type of mounting is Through Hole. Microcontroller is based on the 8-Bit core architecture. The type of program memory it uses is FLASH. Temperatures in the range of -40°C~85°C TA are operated by this Microcontroller. It is part of the PIC® XLP™ 16F series of electrical components. Having a size of 3.5KB 2K x 14, Microcontroller has a program memory of X bytes. A PIC Core Processor is at the core of this Microcontroller. This device belongs to the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. IC Chip 8 has 8 terminations. 8-bits are used for its size. IC Chip has 2.3V volt supply outputs. With NO DMA channels, Microcontroller chip can handle large data transfers. 3.5kB is the size of the memory in the IC part. Using the base part number PIC16LF1823, you will be able to find alternatives for the part. Using a 32MHz frequency, this electronic part can perform efficiently. Devices work in NO PWM channels. On the chip, 14 pins are accessible. In total, there are 3 timers/counters on the device. The pin count is 8. There is an embedded the PIC CPU family inside the device, which makes it a powerful device. The ADC channel count on this device totals up to 8 Channel channels.
