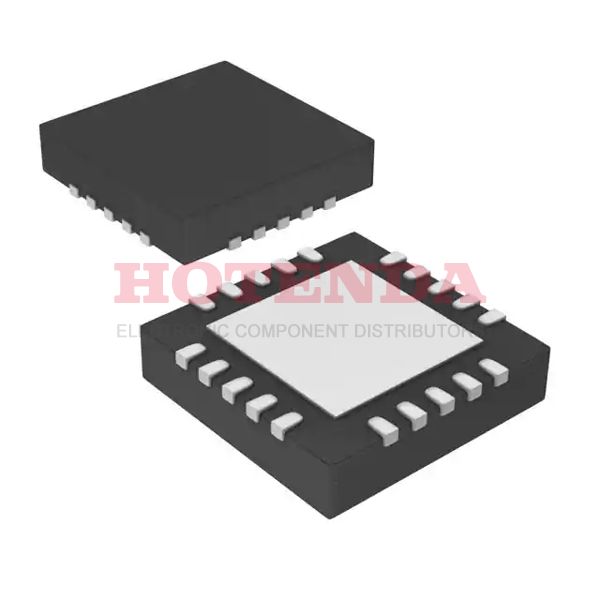

Name: PIC16LF1707-E/ML
Brand: Microchip Technology
SKU: PIC16LF1707-E/ML
Availability: InStock

new-10%

PIC16LF1707-E/ML

Manufacturer part number:PIC16LF1707-E/ML

Manufacturer:Microchip Technology

Description:3.5KB 2K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 16F Series PIC16LF1707 20 Pin 32MHz 3V 20-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC16LF1707-E/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	20-VFQFN Exposed Pad
Surface Mount	YES
Number of Pins	20
Supplier Device Package	20-QFN (4x4)
Weight	123.008581mg
Interfaces	I2C/LIN/RS-232/RS-48
Data Converters	A/D 8x10b
Package	Tube
Base Product Number	PIC16LF1707
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	PIC® XLP™ 16F
Published	2013
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
Terminal Finish	Matte Tin (Sn)
Additional Feature	IT ALSO OPERATES IN 16MHZ AT 1.8V MIN SUPPLY
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	3V
Terminal Pitch	0.65mm
Frequency	32MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16LF1707
Operating Supply Voltage	3.6V
Interface	I2C, LIN, RS-232, SPI
Memory Size	3.5kB
Oscillator Type	Internal
Number of I/O	18
Speed	32MHz
RAM Size	256 x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	3.5KB 2K x 14
Connectivity	I2C, LINbus, SPI
Bit Size	8
Data Converter	A/D 8x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
EEPROM Size	--
On Chip Program ROM Width	14
Device Core	PIC
Length	4mm
Height Seated (Max)	1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC16LF1707-E/ML Product Details

PIC16LF1707-E/ML Overview

This Microcontroller comes in a 20-VFQFN Exposed Pad package. This Microcontroller has 18 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in PIC® XLP™ 16F Series. The size of the program memory of Microcontroller is 3.5KB 2K x 14. MCU is powered by PIC Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 20 terminals. Microcontroller comes with 8 bit size. The component always operates in 3V supply voltage. MCU chip has NO DMA channels. The part owns 3.5kB memory size. You can find alternatives through the base part number PIC16LF1707. MCU's frequency is 32MHz. The device works in YES PWM channels. The pin number of the component remains 20. It has 3 timers/counters. To name a few, there are additional features like IT ALSO OPERATES IN 16MHZ AT 1.8V MIN SUPPLY.
