Name: PIC16LF1703-I/ML
Brand: Microchip Technology
SKU: PIC16LF1703-I/ML
Availability: InStock

new-10%

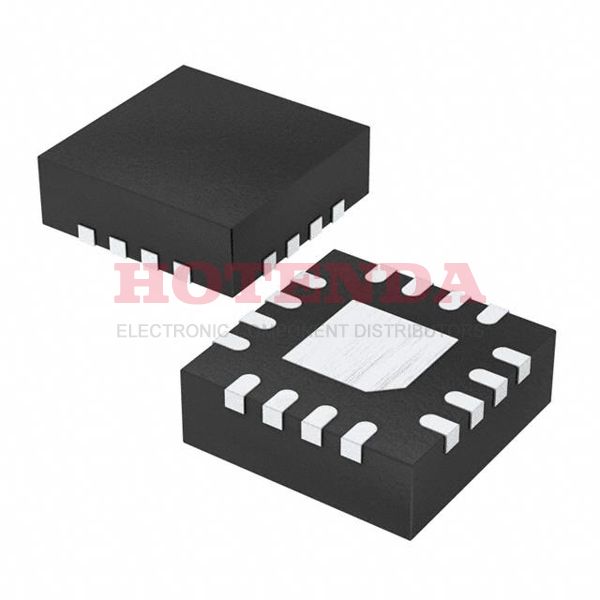

PIC16LF1703-I/ML

Manufacturer part number:PIC16LF1703-I/ML

Manufacturer:Microchip Technology

Description:3.5KB 2K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 16F Series PIC16LF1703 16 Pin 32MHz 3V 16-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC16LF1703-I/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad
Surface Mount	YES
Number of Pins	16
Supplier Device Package	16-QFN (4x4)
Weight	57.09594mg
Interfaces	I2C/LIN/RS-232/RS-48
Data Converters	A/D 8x10b
Package	Tube
Base Product Number	PIC16LF1703
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® XLP™ 16F
Published	2013
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
Terminal Finish	Matte Tin (Sn)
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	3V
Terminal Pitch	0.65mm
Frequency	32MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16LF1703
Supply Voltage-Min (Vsup)	2.5V
Interface	I2C, LIN, RS-232, SPI
Memory Size	3.5kB
Oscillator Type	Internal
Number of I/O	12
Speed	32MHz
RAM Size	256 x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	3.5KB 2K x 14
Connectivity	I2C, LINbus, SPI
Bit Size	8
Data Converter	A/D 8x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
Number of Timers/Counters	3
EEPROM Size	--
On Chip Program ROM Width	14
Number of ADC Channels	8
Device Core	PIC
Length	4mm
Height Seated (Max)	1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
