Name: PIC16LF1512-E/MV
Brand: Microchip Technology
SKU: PIC16LF1512-E/MV
Availability: InStock

new-10%

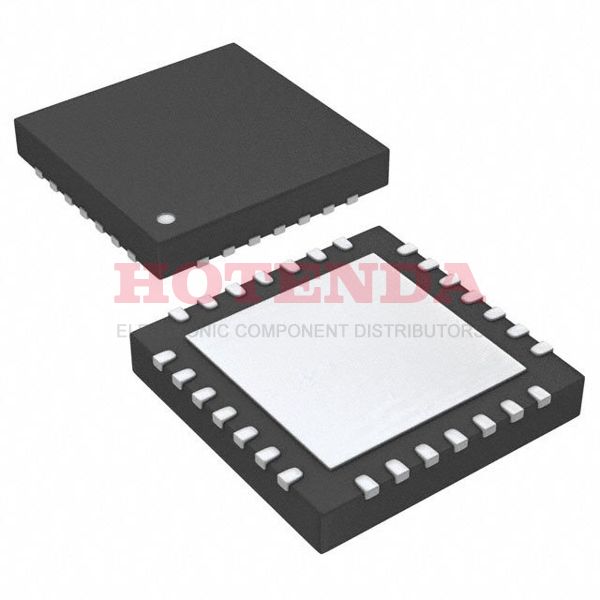

PIC16LF1512-E/MV

Manufacturer part number:PIC16LF1512-E/MV

Manufacturer:Microchip Technology

Description:3.5KB 2K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 16F Series PIC16LF1512 28 Pin 20MHz 28-UFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC16LF1512-E/MV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	28-UFQFN Exposed Pad
Number of Pins	28
Supplier Device Package	28-UQFN (4x4)
Interfaces	I2C/SPI/USART
Data Converters	A/D 17x10b
RoHS	Compliant
Package	Tube
Base Product Number	PIC16LF1512
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	PIC® XLP™ 16F
Published	2012
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	125 °C
Min Operating Temperature	-40 °C
Max Power Dissipation	800mW
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.4mm
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16LF1512
Supply Voltage-Min (Vsup)	2.5V
Interface	I2C, LIN, SPI, UART, USART
Max Supply Voltage	3.6 V
Min Supply Voltage	1.8 V
Memory Size	3.5kB
Oscillator Type	Internal
Number of I/O	25
Speed	20MHz
RAM Size	128 x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	3.5KB 2K x 14
Connectivity	I2C, LINbus, SPI, UART/USART
Supply Current-Max	2.1mA
Bit Size	8
Data Converter	A/D 17x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
Number of Timers/Counters	3
ROM (words)	2048
Core Architecture	PIC
EEPROM Size	--
CPU Family	PIC
Max Frequency	20 MHz
Number of Programmable I/O	25
Device Core	PIC
Length	4mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC16LF1512-E/MV Product Details

PIC16LF1512-E/MV Overview

This Microcontroller comes in a 28-UFQFN Exposed Pad package. This Microcontroller has 25 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in PIC® XLP™ 16F Series. The size of the program memory of Microcontroller is 3.5KB 2K x 14. MCU is powered by PIC Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 28 terminals. Microcontroller comes with 8 bit size. MCU chip has NO DMA channels. The part owns 3.5kB memory size. You can find alternatives through the base part number PIC16LF1512. MCU's frequency is 20MHz. The device works in YES PWM channels. The pin number of the component remains 28. It has 3 timers/counters. The device is embedded with PIC CPU family. This equipment features FLASH memory. It has a PIC core architecture integrated into it. It programs in 25 Programmable I/O.
