Name: PIC16LC774-I/P
Brand: Microchip Technology
SKU: PIC16LC774-I/P
Availability: InStock

new-10%

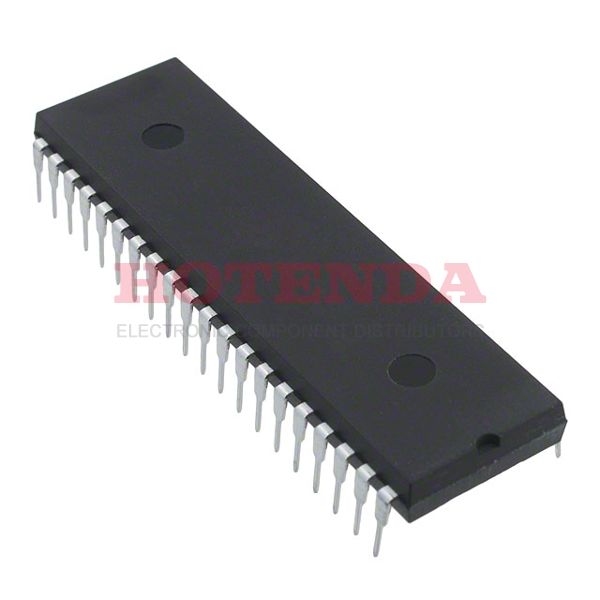

PIC16LC774-I/P

Manufacturer part number:PIC16LC774-I/P

Manufacturer:Microchip Technology

Description:7KB 4K x 14 OTP PIC 8-Bit Microcontroller PIC® 16C Series PIC16LC774 40 Pin 20MHz 5V 40-DIP (0.600, 15.24mm)

Case Package:SOT-23

Datasheet:PIC16LC774-I/P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	40-DIP (0.600, 15.24mm)
Surface Mount	NO
Number of Pins	40
Supplier Device Package	40-PDIP
Data Converters	A/D 10x12b
Package	Tube
Base Product Number	PIC16LC774
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® 16C
Published	1999
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	40
Terminal Finish	MATTE TIN
Max Power Dissipation	1W
Terminal Position	DUAL
Supply Voltage	5V
Terminal Pitch	2.54mm
Frequency	20MHz
Base Part Number	PIC16LC774
Pin Count	40
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	4.5V
Interface	I2C, SPI, SSP, UART, USART
Memory Size	7kB
Oscillator Type	External
Number of I/O	33
Speed	20MHz
RAM Size	256 x 8
Memory Type	EPROM
Voltage - Supply (Vcc/Vdd)	2.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	7KB 4K x 14
Connectivity	I2C, SPI, UART/USART
Bit Size	8
Data Converter	A/D 10x12b
Watchdog Timer	Yes
Access Time	20 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
EEPROM Size	--
On Chip Program ROM Width	14
Length	51.26mm
Height Seated (Max)	4.06mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16LC774-I/P Product Details

PIC16LC774-I/P Overview

There is a 40-DIP (0.600, 15.24mm) package available. The board has 33 I/Os. Using the Mounting Type Through Hole, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is OTP. -40°C~85°C TA is the temperature range at which this Microcontroller operates. PIC® 16C-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 7KB 4K x 14. Powered by a PIC Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 40. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 5V volts. A total of NO DMA channels are available. This IC part has a memory size of 7kB. There are a number of alternatives to the base part number PIC16LC774 that you can find. Performing well when operated at frequency 20MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 40 pins that can be accessed. It comes with 3 timers/counters that can be set up. The pins counted are 40. EPROM memory is one of the features of this equipment.
