Name: PIC16HV540-20/SS
Brand: Microchip Technology
SKU: PIC16HV540-20/SS
Availability: InStock

new-10%

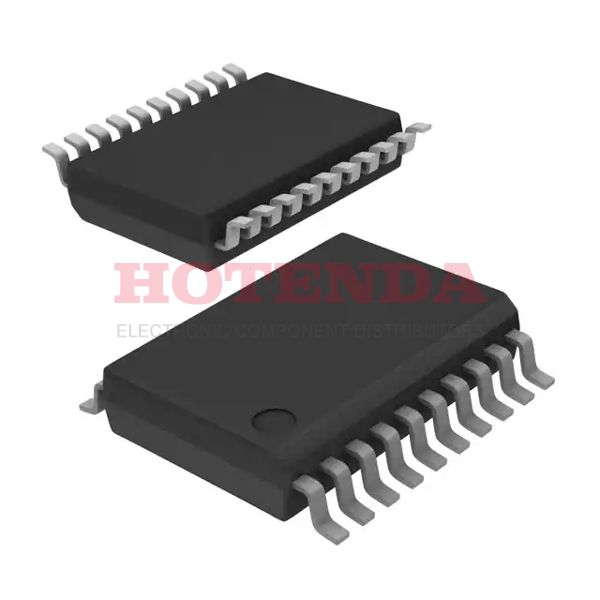

PIC16HV540-20/SS

Manufacturer part number:PIC16HV540-20/SS

Manufacturer:Microchip Technology

Description:768B 512 x 12 OTP PIC 8-Bit Microcontroller PIC® 16C Series PIC16HV540 20 Pin 20MHz 9V 20-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:PIC16HV540-20/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.209, 5.30mm Width)
Number of Pins	20
Supplier Device Package	20-SSOP
Data Converters	--
Number of I/Os	12
RoHS	Compliant
Package	Tube
Base Product Number	PIC16HV540
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	0°C~70°C TA
Packaging	Tube
Series	PIC® 16C
Published	1999
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Max Power Dissipation	800mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	9V
Terminal Pitch	0.65mm
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16HV540
Pin Count	20
Supply Voltage-Min (Vsup)	3.5V
Max Supply Voltage	15 V
Min Supply Voltage	3.5 V
Memory Size	1.5kB
Oscillator Type	External
Number of I/O	12
Speed	20MHz
RAM Size	25 x 8
Memory Type	EPROM
Voltage - Supply (Vcc/Vdd)	3.5V~15V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	768B 512 x 12
Connectivity	--
Bit Size	8
Watchdog Timer	Yes
Access Time	20 μs
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	NO
Number of Timers/Counters	1
ROM (words)	512
Core Architecture	PIC
EEPROM Size	--
On Chip Program ROM Width	12
CPU Family	PIC
Max Frequency	20 MHz
Number of Programmable I/O	12
Device Core	PIC
Length	7.2mm
Height Seated (Max)	2mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16HV540-20/SS Product Details

PIC16HV540-20/SS Overview
