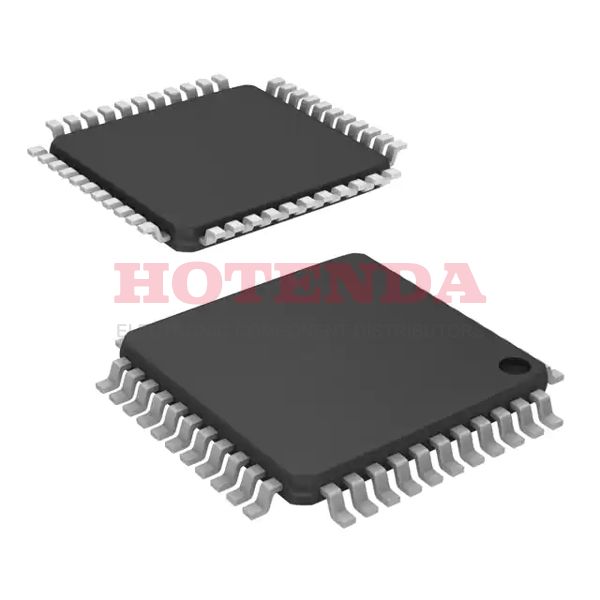

PIC16F877-20I/PT

PIC16F877-20I/PT Description

The PIC16F877-20I/PT is an 8-Bit CMOS FLASH Microcontroller.

PIC16F877-20I/PT Features

• High-performance RISC CPU

• Only 35 single-word instructions to learn

• All single cycle instructions except for program branches which are two cycle

• Operating speed: DC - 20 MHz clock input

• DC - 200 ns instruction cycle

• Up to 8K x 14 words of FLASH Program Memory,

• Up to 368 x 8 bytes of Data Memory (RAM)

• Up to 256 x 8 bytes of EEPROM Data Memory

• Pinout compatible to the PIC16C73B/74B/76/77

• Interrupt capability (up to 14 sources)

• Eight-level deep hardware stack

• Direct, indirect and relative addressing modes

• Power-on Reset (POR)

• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

• Programmable code protection

• Power saving SLEEP mode

PIC16F877-20I/PT Applications

• Industrial

• General Uses
