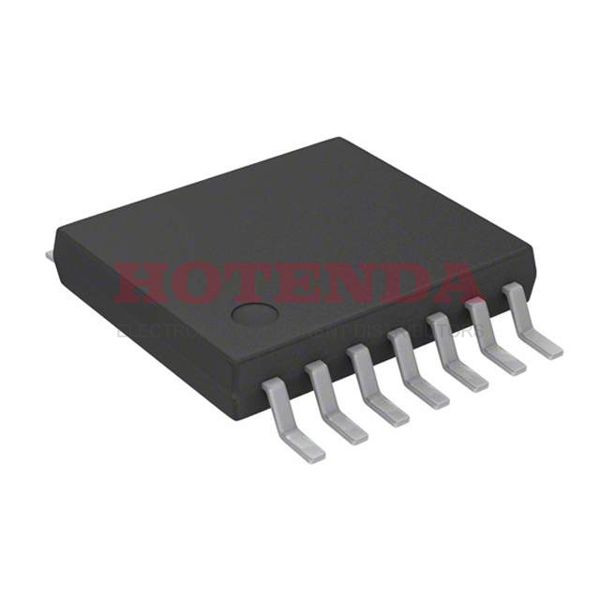

PIC16F630T-E/ST Overview
A 14-TSSOP (0.173, 4.40mm Width) package is included. In total, it has 12 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 8-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~125°C TA. PIC® 16F series components belong to this electrical component. Its program memory size is 1.75KB 1K x 14. There is a PIC Core Processor inside MCU that provides this device with its power. MICROCONTROLLER, RISC uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 14 terminations in total. The part works on a 8-bit basis. An output voltage of 5V volts is available for this Microcontroller chip. The Microcontroller chip has NO DMA channels. 1.8kB memory size belongs to the part. PIC16F630 is the base part number that you can use to find alternatives. A good performance can be achieved at a frequency of 20MHz, as long as it is operated at a low power consumption. In order for the device to work with the motor, it utilizes the PWM channel NO. On the chip, there are 14 pins that are accessible. A total of 2 timers/counters are included in the package. A total of 14 pins are present. Devices based on the PIC series of CPUs are embedded in the device.
PIC16F630T-E/ST Features
14-TSSOP (0.173, 4.40mm Width) package
Mounting type of Surface Mount
PIC16F630T-E/ST Applications
There are a lot of Microchip Technology
PIC16F630T-E/ST Microcontroller applications.
- Calculator
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
- Entertainment products
- Digital cameras
