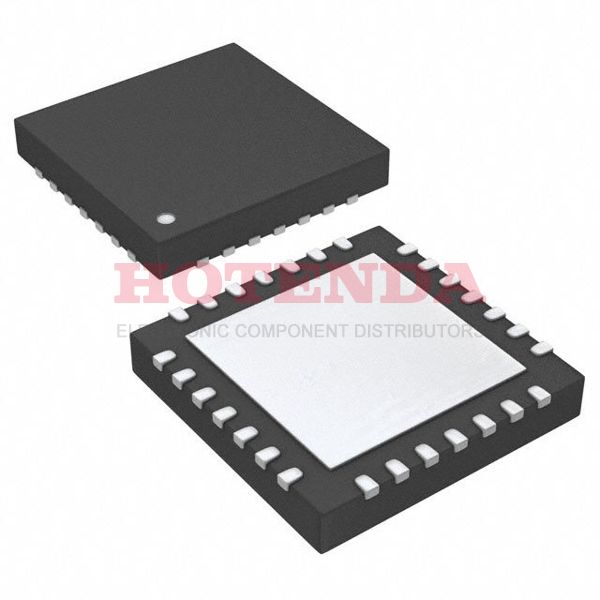

PIC16F570-E/MV Overview
A 28-UFQFN Exposed Pad package is included. In total, it has 24 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 8-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~125°C TA. PIC® 16F series components belong to this electrical component. Its program memory size is 3KB 2K x 12. There is a PIC Core Processor inside MCU that provides this device with its power. MICROCONTROLLER, RISC uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 28 terminations in total. The part works on a 8-bit basis. An output voltage of 5V volts is available for this Microcontroller chip. The Microcontroller chip has NO DMA channels. 3kB memory size belongs to the part. PIC16F570 is the base part number that you can use to find alternatives. In order for the device to work with the motor, it utilizes the PWM channel YES. On the chip, there are 28 pins that are accessible. A total of 1 Timer timers/counters are included in the package. Devices based on the PIC series of CPUs are embedded in the device. In total, there are 8 channels for the ADC on this board.
PIC16F570-E/MV Features
28-UFQFN Exposed Pad package
Mounting type of Surface Mount
PIC16F570-E/MV Applications
There are a lot of Microchip Technology
PIC16F570-E/MV Microcontroller applications.
- Calculator
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
- Entertainment products
- Digital cameras
