Name: PIC16F19176T-I/MV
Brand: Microchip Technology
SKU: PIC16F19176T-I/MV
Price: 2.47000 USD
Availability: InStock

new-10%

PIC16F19176T-I/MV

Manufacturer part number:PIC16F19176T-I/MV

Manufacturer:Microchip Technology

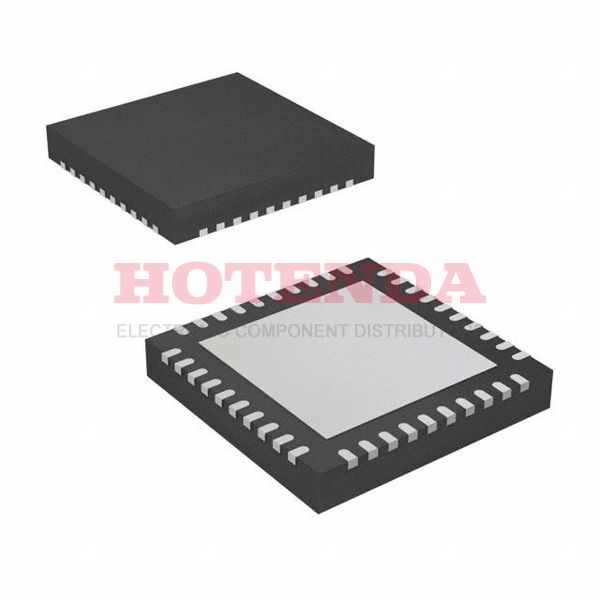

Description:28KB 16K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 16F Series PIC16F19176 3V 40-UFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC16F19176T-I/MV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mounting Type	Surface Mount
Package / Case	40-UFQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	40-UQFN (5x5)
Mounting Style	SMD/SMT
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	PIC16F19176
Mfr	Microchip Technology
Data Converters	A/D 31x12b; D/A 1x5b
Product Status	Active
DAC Resolution	5 bit
Qualification	AEC-Q100
Number of I/Os	35 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	EUSART, I2C, SPI
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® XLP™ 16F
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	40
Terminal Finish	Matte Tin (Sn) - annealed
Additional Feature	IT ALSO OPERATES AT 2.3V MIN AT 16 MHZ
HTS Code	8542.31.00.01
Subcategory	Microcontrollers - MCU
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	3V
Terminal Pitch	0.4mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	PIC16F19176
JESD-30 Code	S-PQCC-N40
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	2.5V
Oscillator Type	Internal
Number of I/O	35
Speed	32MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	2.3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, LCD, POR, PWM, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	28KB 16K x 14
Connectivity	I2C, LINbus, SPI, UART/USART
Bit Size	8
Data Converter	A/D 31x12b; D/A 1x5b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8 bit
PWM Channels	YES
DAC Channels	YES
Product Type	8-bit Microcontrollers - MCU
EEPROM Size	256 x 8
On Chip Program ROM Width	14
Number of ADC Channels	31 Channel
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Length	5mm
Height Seated (Max)	0.55mm
Width	5mm
RoHS Status	RoHS Compliant

PIC16F19176T-I/MV Product Details

PIC16F19176T-I/MV Overview

This Microcontroller comes in a 40-UFQFN Exposed Pad package. This Microcontroller has 35 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in PIC® XLP™ 16F Series. The size of the program memory of Microcontroller is 28KB 16K x 14. MCU is powered by PIC Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 40 terminals. Microcontroller comes with 8 bit size. The component always operates in 3V supply voltage. MCU chip has NO DMA channels. You can find alternatives through the base part number PIC16F19176. The device works in YES PWM channels. It is at 32MHz clock frequency. To name a few, there are additional features like IT ALSO OPERATES AT 2.3V MIN AT 16 MHZ. It has a total of 31 Channel ADC channels.
