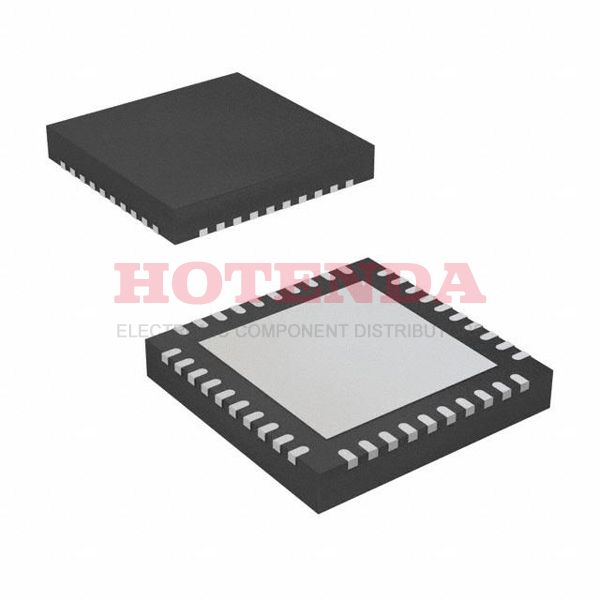

Name: PIC16F18876T-I/MV
Brand: Microchip Technology
SKU: PIC16F18876T-I/MV
Price: 2.04000 USD
Availability: InStock

new-10%

PIC16F18876T-I/MV

Manufacturer part number:PIC16F18876T-I/MV

Manufacturer:Microchip Technology

Description:28KB 16K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 16F Series PIC16F18876 3V 40-UFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC16F18876T-I/MV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mounting Type	Surface Mount
Package / Case	40-UFQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	40-UQFN (5x5)
Mounting Style	SMD/SMT
Interfaces	Serial I2C/SPI/UART
Data Converters	A/D 35x10b, D/A 1x5b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	PIC16F18876
Mfr	Microchip Technology
Product Status	Active
DAC Resolution	5 bit
Qualification	AEC-Q100
Number of I/Os	36 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	EUSART, I2C, LIN, RS-232, RS-485, SPI
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® XLP™ 16F
Published	2016
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	40
Terminal Finish	Matte Tin (Sn) - annealed
Additional Feature	OPERATES AT 2.3V MINIMUM SUPPLY AT 16 MHZ
HTS Code	8542.31.00.01
Subcategory	Microcontrollers - MCU
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3V
Terminal Pitch	0.4mm
Base Part Number	PIC16F18876
JESD-30 Code	S-PQCC-N40
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	2.5V
Oscillator Type	Internal
Number of I/O	36
Speed	32MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	2.3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	28KB 16K x 14
Connectivity	I2C, LINbus, SPI, UART/USART
Bit Size	8
Data Converter	A/D 35x10b; D/A 1x5b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8 bit
PWM Channels	YES
DAC Channels	YES
Product Type	8-bit Microcontrollers - MCU
EEPROM Size	256 x 8
On Chip Program ROM Width	14
Number of ADC Channels	35 Channel
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Length	5mm
Height Seated (Max)	0.55mm
Width	5mm
RoHS Status	ROHS3 Compliant

PIC16F18876T-I/MV Product Details

PIC16F18876T-I/MV Overview

There is a 40-UFQFN Exposed Pad package available. The board has 36 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. PIC® XLP™ 16F-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 28KB 16K x 14. Powered by a PIC Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 40. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 3V volts. A total of NO DMA channels are available. There are a number of alternatives to the base part number PIC16F18876 that you can find. Using YES PWM channels, the device works. As far as the clock frequency is concerned, it operates at 32MHz clock speed. In addition to these features, there are a number of other ones, such as this one: OPERATES AT 2.3V MINIMUM SUPPLY AT 16 MHZ. The device has a total of 35 Channel ADC channels in total.
