Name: PIC16F18323-E/STVAO
Brand: Microchip Technology
SKU: PIC16F18323-E/STVAO
Availability: InStock

new-10%

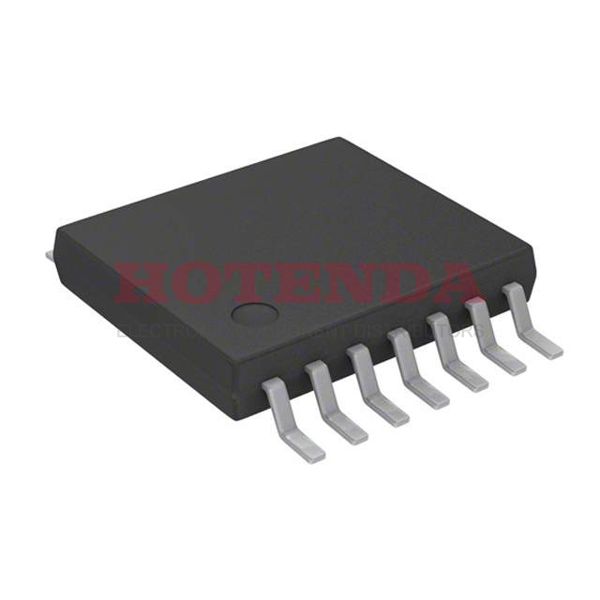

PIC16F18323-E/STVAO

Manufacturer part number:PIC16F18323-E/STVAO

Manufacturer:Microchip Technology

Description:3.5KB 2K x 14 FLASH PIC 8-Bit Microcontroller Automotive, AEC-Q100, PIC® XLP™ 16F Series 3V 14-TSSOP (0.173, 4.40mm Width)

Case Package:SOT-23

Datasheet:PIC16F18323-E/STVAO Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173, 4.40mm Width)
Surface Mount	YES
Supplier Device Package	14-TSSOP
Package	Tube
Base Product Number	PIC16F18323
Mfr	Microchip Technology
Data Converters	A/D 11x10b
Product Status	Active
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	Automotive, AEC-Q100, PIC® XLP™ 16F
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	14
Terminal Finish	Matte Tin (Sn)
Additional Feature	2.3 V MINIMUM SUPPLY AT 16 MHZ
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3V
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	30
JESD-30 Code	R-PDSO-G14
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	2.5V
Oscillator Type	Internal
Number of I/O	12
Speed	32MHz
RAM Size	256 x 8
Voltage - Supply (Vcc/Vdd)	2.3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	3.5KB 2K x 14
Connectivity	I2C, LINbus, SPI, UART/USART
Supply Current-Max	2.6mA
Bit Size	8
Data Converter	A/D 11x10b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	YES
ROM (words)	2048
EEPROM Size	256 x 8
On Chip Program ROM Width	14
Boundary Scan	NO
Low Power Mode	YES
Format	FIXED-POINT
Integrated Cache	NO
RAM (words)	256
RAM (bytes)	256
Number of Serial I/Os	1
Number of Timers	3
Number of External Interrupts	1
On Chip Data RAM Width	8
Length	5mm
Height Seated (Max)	1.2mm
Width	4.4mm
RoHS Status	RoHS Compliant

PIC16F18323-E/STVAO Product Details

PIC16F18323-E/STVAO Overview

There is a 14-TSSOP (0.173, 4.40mm Width) package available. The board has 12 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~125°C TA is the temperature range at which this Microcontroller operates. Automotive, AEC-Q100, PIC® XLP™ 16F-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 3.5KB 2K x 14. Powered by a PIC Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 14. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 3V volts. A total of NO DMA channels are available. Using YES PWM channels, the device works. As far as the clock frequency is concerned, it operates at 32MHz clock speed. In addition to these features, there are a number of other ones, such as this one: 2.3 V MINIMUM SUPPLY AT 16 MHZ. It contains 1 serial input/output interfaces on the board. The part contains 1 interrupts external to the system. The total number of bits on a MCU chip is 3.
