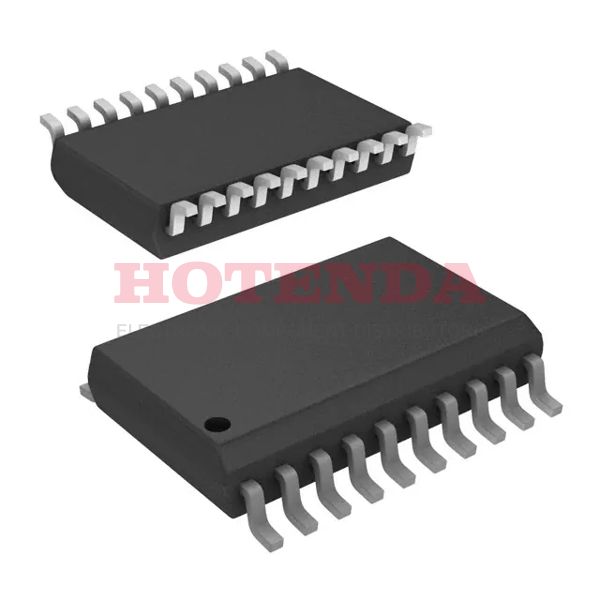

PIC16F1709-E/SO Overview
This Microcontroller comes in a 20-SOIC (0.295, 7.50mm Width) package. This Microcontroller has 18 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in PIC® XLP™ 16F Series. The size of the program memory of Microcontroller is 14KB 8K x 14. MCU is powered by PIC Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 20 terminals. Microcontroller comes with 8 bit size. The component always operates in 3V supply voltage. MCU chip has NO DMA channels. The part owns 14kB memory size. You can find alternatives through the base part number PIC16F1709. MCU's frequency is 32MHz. The pin number of the component remains 20. It has 5 timers/counters. It enjoys 1 UART channels. It has a total of 12 ADC channels. 2 PWM channels are used by the device.
PIC16F1709-E/SO Features
20-SOIC (0.295, 7.50mm Width) package
Mounting type of Surface Mount
PIC16F1709-E/SO Applications
There are a lot of Microchip Technology
PIC16F1709-E/SO Microcontroller applications.
- Automatic control
- Equipment control
- Instrument control
- Toys
- Robots
- Radio
- Television
- Heater/Fan
- Calculator
- Kindle
