Name: PIC16F15355-E/SSVAO
Brand: Microchip Technology
SKU: PIC16F15355-E/SSVAO
Availability: InStock

new-10%

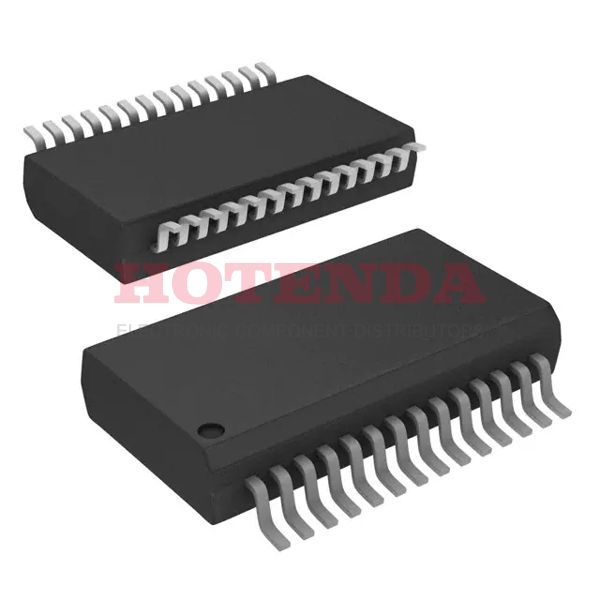

PIC16F15355-E/SSVAO

Manufacturer part number:PIC16F15355-E/SSVAO

Manufacturer:Microchip Technology

Description:14KB 8K x 14 FLASH PIC 8-Bit Microcontroller Automotive, AEC-Q100, PIC® XLP™ 16F Series 3V 28-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:PIC16F15355-E/SSVAO Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Surface Mount	YES
Supplier Device Package	28-SSOP
Package	Tube
Base Product Number	PIC16F15355
Mfr	Microchip Technology
Data Converters	A/D 24x10b; D/A 1x5b
Product Status	Active
Operating Temperature	-40°C~125°C TA
Series	Automotive, AEC-Q100, PIC® XLP™ 16F
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
Terminal Position	DUAL
Terminal Form	GULL WING
Supply Voltage	3V
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
JESD-30 Code	R-PDSO-G28
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	2.3V
Oscillator Type	Internal
Number of I/O	25
Speed	32MHz
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	2.3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	14KB 8K x 14
Connectivity	I2C, LINbus, SPI, UART/USART
Supply Current-Max	3.7mA
Bit Size	8
Data Converter	A/D 24x10b; D/A 1x5b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	YES
ROM (words)	8192
EEPROM Size	-
On Chip Program ROM Width	14
Boundary Scan	NO
Low Power Mode	NO
Format	FIXED-POINT
Integrated Cache	NO
RAM (words)	1024
RAM (bytes)	1024
Number of Serial I/Os	2
Number of Timers	3
On Chip Data RAM Width	8
Length	10.2mm
Height Seated (Max)	2mm
Width	5.3mm

PIC16F15355-E/SSVAO Product Details

PIC16F15355-E/SSVAO Overview

In a 28-SSOP (0.209, 5.30mm Width) package, the MCU is available. 25 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~125°C TA that is operated by this Microcontroller. Automotive, AEC-Q100, PIC® XLP™ 16F series components make up this electrical component. 14KB 8K x 14 is the size of its program memory. A PIC Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 28 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 3V volt supply output on the chip. DMA channels number NO. The device works in YES PWM channels. A 32MHz-clock frequency is used to operate it. There are 2 serial I/Os incorporated into the chip part. It is possible to have 3 bits in a IC chip.
