Name: PIC16C712-20I/P
Brand: Microchip Technology
SKU: PIC16C712-20I/P
Price: 4.05000 USD
Availability: InStock

new-10%

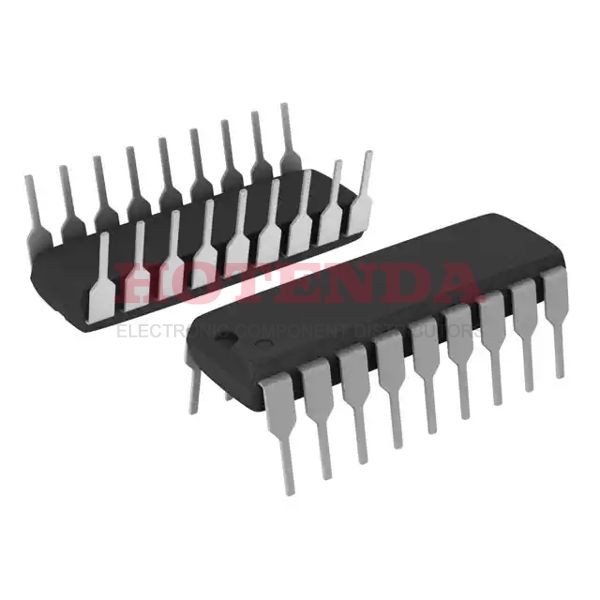

PIC16C712-20I/P

Manufacturer part number:PIC16C712-20I/P

Manufacturer:Microchip Technology

Description:1.75KB 1K x 14 OTP PIC 8-Bit Microcontroller PIC® 16C Series PIC16C712 18 Pin 20MHz 5V 18-DIP (0.300, 7.62mm)

Case Package:SOT-23

Datasheet:PIC16C712-20I/P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Through Hole
Package / Case	18-DIP (0.300, 7.62mm)
Surface Mount	NO
Number of Pins	18
Supplier Device Package	18-PDIP
Mounting Style	Through Hole
Instruction Set Architecture	RISC
Clock Freq	20(MHz)
Operating Temperature Classification	Industrial
Package Type	PDIP
Number of Timers - General Purpose	3
Operating Temp Range	-40C to 85C
# I/Os (Max)	13
Power Dissipation (Max)	1000(mW)
Total Internal Ram Size	128B(kB)
Device Core Size	8(b)
Operating Supply Voltage (Max)	5.5(V)
Operating Supply Voltage (Typ)	5(V)
Rad Hardened	No
Operating Supply Voltage (Min)	4(V)
Programmable	Yes
Maximum Expanded Memory Size	14KB
Mounting	Through Hole
Number of I/Os	13 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Package	Tube
Base Product Number	PIC16C712
Mfr	Microchip Technology
Data Converters	A/D 4x8b
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® 16C
Published	1997
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	18
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Additional Feature	ALSO OPERATES AT 4V MINIMUM SUPPLY AT 4 MHZ
Max Power Dissipation	1W
Terminal Position	DUAL
Supply Voltage	5V
Terminal Pitch	2.54mm
Frequency	20MHz
Base Part Number	PIC16C712
Pin Count	18
Operating Temperature (Max)	85C
Operating Temperature (Min)	-40C
Operating Supply Voltage	5V
Power Supplies	5V
Memory Size	1.8kB
Oscillator Type	External
Number of I/O	13
Speed	20MHz
RAM Size	128 x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	4V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	1.75KB 1K x 14
Connectivity	-
Supply Current-Max	8mA
Bit Size	8
Data Converter	A/D 4x8b
Watchdog Timer	Yes
Access Time	20 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
Product Type	8-bit Microcontrollers - MCU
ROM (words)	1024
EEPROM Size	-
On Chip Program ROM Width	14
CPU Family	PIC
Number of ADC Channels	4 Channel
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Length	22.8mm
Width	6.35 mm
Height	3.3 mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16C712-20I/P Product Details

PIC16C712-20I/P Overview

This Microcontroller comes in a 18-DIP (0.300, 7.62mm) package. This Microcontroller has 13 I/Os. The Mounting Type of the Microcontroller is Through Hole. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is OTP. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in PIC® 16C Series. The size of the program memory of Microcontroller is 1.75KB 1K x 14. MCU is powered by PIC Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 18 terminals. Microcontroller comes with 8 bit size. The component always operates in 5V supply voltage. MCU chip has NO DMA channels. The part owns 1.8kB memory size. You can find alternatives through the base part number PIC16C712. MCU's frequency is 20MHz. The device works in YES PWM channels. The pin number of the component remains 18. It has 3 timers/counters. It counts 18 pins. The device is embedded with PIC CPU family. This equipment features FLASH memory. To name a few, there are additional features like ALSO OPERATES AT 4V MINIMUM SUPPLY AT 4 MHZ. It has a total of 4 Channel ADC channels.
