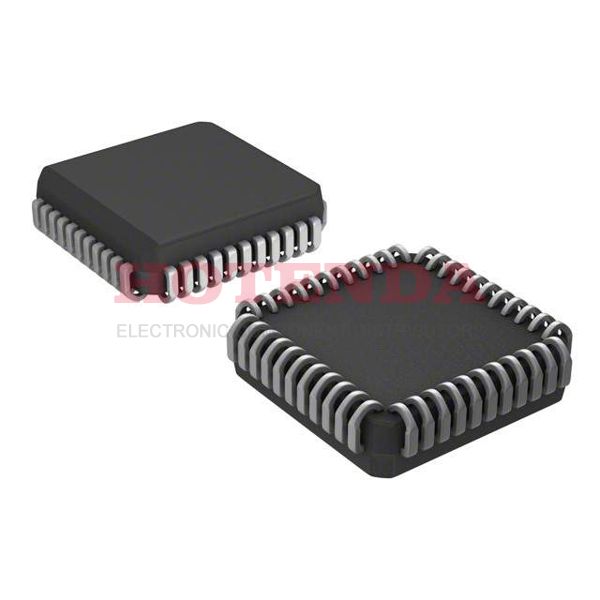

Name: PIC16C662-20I/L
Brand: Microchip Technology
SKU: PIC16C662-20I/L
Availability: InStock

new-10%

PIC16C662-20I/L

Manufacturer part number:PIC16C662-20I/L

Manufacturer:Microchip Technology

Description:7KB 4K x 14 OTP PIC 8-Bit Microcontroller PIC® 16C Series PIC16C662 44 Pin 20MHz 5V 44-LCC (J-Lead)

Case Package:SOT-23

Datasheet:PIC16C662-20I/L Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	44-LCC (J-Lead)
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-PLCC (16.59x16.59)
Data Converters	--
RoHS	Compliant
Package	Tube
Base Product Number	PIC16C662
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® 16C
Published	1996
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Max Power Dissipation	1W
Terminal Position	QUAD
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	245
Supply Voltage	5V
Terminal Pitch	1.27mm
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16C662
Pin Count	44
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	5V
Supply Voltage-Min (Vsup)	4.5V
Interface	RS-232
Max Supply Voltage	6 V
Min Supply Voltage	4 V
Memory Size	7kB
Oscillator Type	External
Number of I/O	33
Speed	20MHz
RAM Size	176 x 8
Memory Type	EPROM
Voltage - Supply (Vcc/Vdd)	4V~6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, LED, POR, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	7KB 4K x 14
Connectivity	--
Supply Current-Max	30mA
Bit Size	8
Watchdog Timer	Yes
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	NO
Number of Timers/Counters	8
ROM (words)	4096
Core Architecture	PIC
EEPROM Size	--
On Chip Program ROM Width	14
CPU Family	PIC
Max Frequency	20 MHz
Number of Programmable I/O	33
Height Seated (Max)	4.57mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16C662-20I/L Product Details

PIC16C662-20I/L Overview

There is a 44-LCC (J-Lead) package available. The board has 33 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is OTP. -40°C~85°C TA is the temperature range at which this Microcontroller operates. PIC® 16C-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 7KB 4K x 14. Powered by a PIC Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 44. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 5V volts. A total of NO DMA channels are available. This IC part has a memory size of 7kB. There are a number of alternatives to the base part number PIC16C662 that you can find. Performing well when operated at frequency 20MHz can be achieved. Using NO PWM channels, the device works. On the chip, there are 44 pins that can be accessed. It comes with 8 timers/counters that can be set up. The pins counted are 44. The device is powered by the the PIC CPU family that is embedded in it. EPROM memory is one of the features of this equipment. The CPU is based on PIC cores. There are 33 Programmable I/Os on this computer.
