Name: PIC14000-04/SS
Brand: Microchip Technology
SKU: PIC14000-04/SS
Availability: InStock

new-10%

PIC14000-04/SS

Manufacturer part number:PIC14000-04/SS

Manufacturer:Microchip Technology

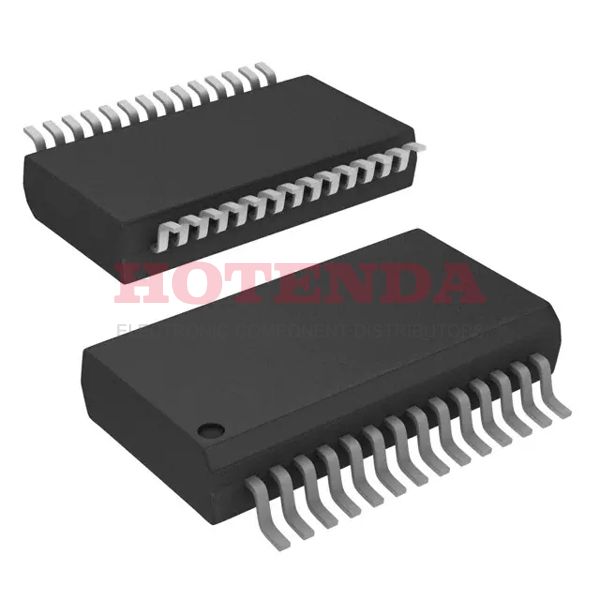

Description:7KB 4K x 14 OTP PIC 8-Bit Microcontroller PIC® 14 Series PIC14000 28 Pin 4MHz 5V 28-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:PIC14000-04/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Number of Pins	28
Supplier Device Package	28-SSOP
Mounting Style	SMD/SMT
Number of I/Os	22 I/O
Maximum Operating Temperature	+ 70 C
Minimum Operating Temperature	0 C
Interface Type	SPI, UART
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Package	Tube
Base Product Number	PIC14000
Mfr	Microchip Technology
Data Converters	Slope A/D
Product Status	Active
Operating Temperature	0°C~70°C TA
Packaging	Tube
Series	PIC® 14
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	1W
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.65mm
Frequency	4MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC14000
Pin Count	28
Supply Voltage-Max (Vsup)	6V
Power Supplies	3/5V
Supply Voltage-Min (Vsup)	2.7V
Interface	I2C, SPI, UART
Memory Size	7kB
Oscillator Type	Internal
Number of I/O	20
Speed	4MHz
RAM Size	192 x 8
Memory Type	EPROM
Voltage - Supply (Vcc/Vdd)	2.7V~6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	POR, Temp Sensor, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	7KB 4K x 14
Connectivity	I2C
Bit Size	8
Data Converter	Slope A/D
Access Time	4 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	NO
Number of Timers/Counters	1
Product Type	8-bit Microcontrollers - MCU
ROM (words)	4096
EEPROM Size	-
On Chip Program ROM Width	14
CPU Family	PIC
Number of Programmable I/O	22
Number of ADC Channels	8 Channel
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Height Seated (Max)	2mm
Width	5.3 mm
Height	1.75 mm
Length	10.2 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC14000-04/SS Product Details

PIC14000-04/SS Overview

It comes in a 28-SSOP (0.209, 5.30mm Width) package. It has a number of 20I/Os. The Mounting Type of the device is Surface Mount. It is based on the 8-Bit. The It?ˉs Program Memory Type is OTP. The device runs in 0??C~70??C TA Operating Temperature. It runs in PIC? 14 Series.

PIC14000-04/SS Features

PIC? 14 series
Base part number of PIC14000
The memory type of EPROM
28 Terminals
Based on the 8-Bit
Comes with 28 Pins

PIC14000-04/SS Applications

There are a lot of Microchip Technology PIC14000-04/SS Microcontroller applications. PIC14000-04/SS MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.
