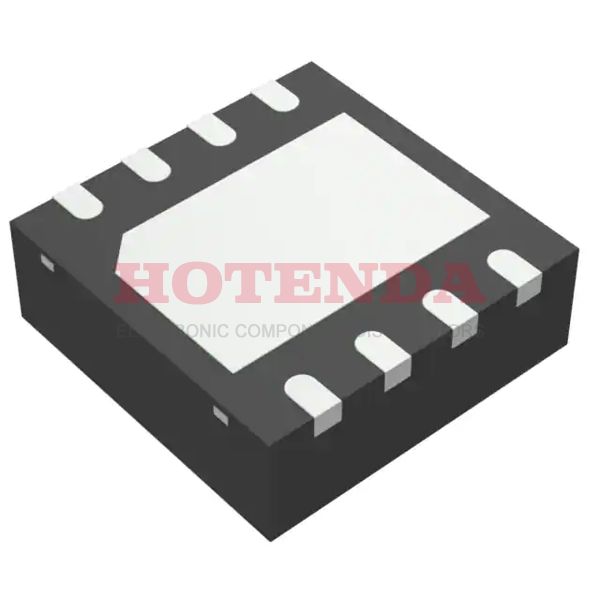

Name: PIC12F683T-I/MD
Brand: Microchip Technology
SKU: PIC12F683T-I/MD
Price: 2.96000 USD
Availability: InStock

new-10%

PIC12F683T-I/MD

Manufacturer part number:PIC12F683T-I/MD

Manufacturer:Microchip Technology

Description:3.5KB 2K x 14 FLASH PIC 8-Bit Microcontroller PIC® 12F Series PIC12F683 8 Pin 20MHz 5V 8-VDFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC12F683T-I/MD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-VDFN Exposed Pad
Number of Pins	8
Supplier Device Package	8-DFN (4x4)
Mounting Style	SMD/SMT
Data Converters	A/D 4x10b
Number of I/Os	6 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	RS-232, USB
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	PIC12F683
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® 12F
Published	2007
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	800mW
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC12F683
Pin Count	8
Operating Supply Voltage	5V
Interface	RS-232, USB
Memory Size	3.5kB
Oscillator Type	Internal
Number of I/O	5
Speed	20MHz
RAM Size	128 x 8
Voltage - Supply (Vcc/Vdd)	2V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	3.5KB 2K x 14
Connectivity	--
Bit Size	8
Data Converter	A/D 4x10b
Watchdog Timer	Yes
Access Time	20 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
Product Type	8-bit Microcontrollers - MCU
EEPROM Size	256 x 8
On Chip Program ROM Width	14
CPU Family	PIC
Number of Programmable I/O	6
Number of ADC Channels	4 Channel
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Length	4mm
Height Seated (Max)	1mm
Width	4 mm
Height	0.88 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC12F683T-I/MD Product Details

PIC12F683T-I/MD Overview

There is a 8-VDFN Exposed Pad package available. The board has 5 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. PIC® 12F-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 3.5KB 2K x 14. Powered by a PIC Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 8. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 5V volts. A total of NO DMA channels are available. This IC part has a memory size of 3.5kB. There are a number of alternatives to the base part number PIC12F683 that you can find. Performing well when operated at frequency 20MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 8 pins that can be accessed. It comes with 3 timers/counters that can be set up. The pins counted are 8. The device is powered by the the PIC CPU family that is embedded in it. There are 6 Programmable I/Os on this computer. The device has a total of 4 Channel ADC channels in total.
