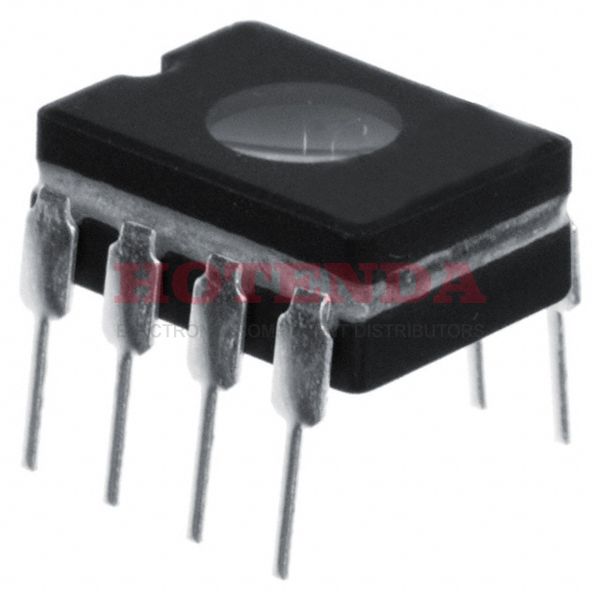

PIC12C509A/JW Overview
A 8-CDIP (0.300, 7.62mm) Window package is included. In total, it has 5 inputs and outputs. This Microcontroller is mounted using the Through Hole mounting type. Powered by the 8-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is EPROM, UV. The temperature range of this Microcontroller is within the range of 0°C~70°C TA. PIC® 12C series components belong to this electrical component. Its program memory size is 1.5KB 1K x 12. There is a PIC Core Processor inside MCU that provides this device with its power. MICROCONTROLLER, RISC uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 8 terminations in total. The part works on a 8-bit basis. The Microcontroller chip has NO DMA channels. 1.5kB memory size belongs to the part. PIC12C509A is the base part number that you can use to find alternatives. A good performance can be achieved at a frequency of 4MHz, as long as it is operated at a low power consumption. In order for the device to work with the motor, it utilizes the PWM channel NO. On the chip, there are 8 pins that are accessible. A total of 1 timers/counters are included in the package. A total of 8 pins are present. There's built-in EPROM memory in the equipment.
PIC12C509A/JW Features
8-CDIP (0.300, 7.62mm) Window package
Mounting type of Through Hole
PIC12C509A/JW Applications
There are a lot of Microchip Technology
PIC12C509A/JW Microcontroller applications.
- Calculator
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
- Entertainment products
- Digital cameras
