Name: MIC94310-GYMT-TR
Brand: Microchip Technology
SKU: MIC94310-GYMT-TR
Price: 0.37000 USD
Availability: InStock

new-10%

MIC94310-GYMT-TR

Manufacturer part number:MIC94310-GYMT-TR

Manufacturer:Microchip Technology

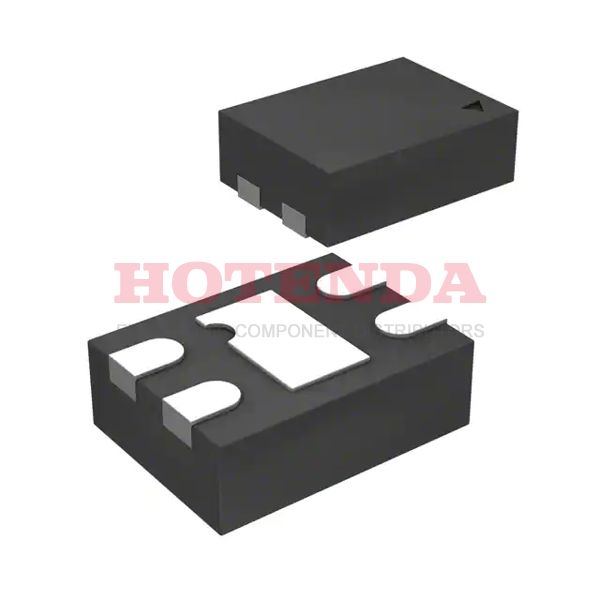

Description:Enable Fixed 0.5 mm MIC94310 PMIC Ripple Blocker™ Series 4 4-UFDFN Exposed Pad, 4-TMLF®

Case Package:SOT-23

Datasheet:MIC94310-GYMT-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	4-UFDFN Exposed Pad, 4-TMLF®
Surface Mount	YES
Number of Pins	4
Supplier Device Package	4-TMLF® (1.2x1.6)
Number of Terminals	4
Mounting Style	SMD/SMT
Supplier Package	TDFN EP
Input Voltage Range	1.8, 3.6 V
Maximum Input Voltage	3.6 V
Junction to Ambient	173 °C/W
Mounting	Surface Mount
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC94310
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	Ripple Blocker™
Published	2016
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium (Ni/Pd)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.5 mm
Reach Compliance Code	compliant
Current Rating	200mA
Base Part Number	MIC94310
Pin Count	4
JESD-30 Code	R-PDSO-G4
Function	LDO
Number of Outputs	1
Voltage - Input (Max)	3.6V
Output Voltage	1.8V
Output Type	Fixed
Operating Supply Voltage	3.6V
Polarity	Positive
Output Configuration	Positive
Output Current	0.2 A
Max Supply Current	1μA
Current - Output	200mA
Turn On Delay Time	70 μs
Control Features	Enable
Voltage - Output (Min/Fixed)	1.8V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	250μA
Voltage Dropout (Max)	0.1V @ 200mA
PSRR	85dB ~ 50dB (100Hz ~ 10MHz)
Seated Height-Max	0.6 mm
Dropout Voltage	40mV
Product Type	LDO Voltage Regulators
Output Voltage1-Max	1.854 V
Output Voltage1-Min	1.746 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.2 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.1 V
Min Current Limit	250mA
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.8 V
Load Regulation	4 mV
Product Category	LDO Voltage Regulators
Width	1.2 mm
Length	1.6 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC94310-GYMT-TR Product Details

MIC94310-GYMT-TR Description

MIC94310-GYMT-TR, manufactured by Microchip Technology and distributed by Utmel Electronics. It's category belong to LDO Voltage Regulators.

It is applied to many fields, like Automotive Infotainment & cluster Industrial Test & measurement Personal electronics Gaming. And the main parameters of this part is: LDO Regulator Pos 1.8V 0.2A Automotive 4-Pin TDFN EP T/R. Additionally, it is green and compliant to RoHS (Lead free / RoHS Compliant).
