Name: MIC59300YME
Brand: Microchip Technology
SKU: MIC59300YME
Price: 3.79000 USD
Availability: InStock

new-10%

MIC59300YME

Manufacturer part number:MIC59300YME

Manufacturer:Microchip Technology

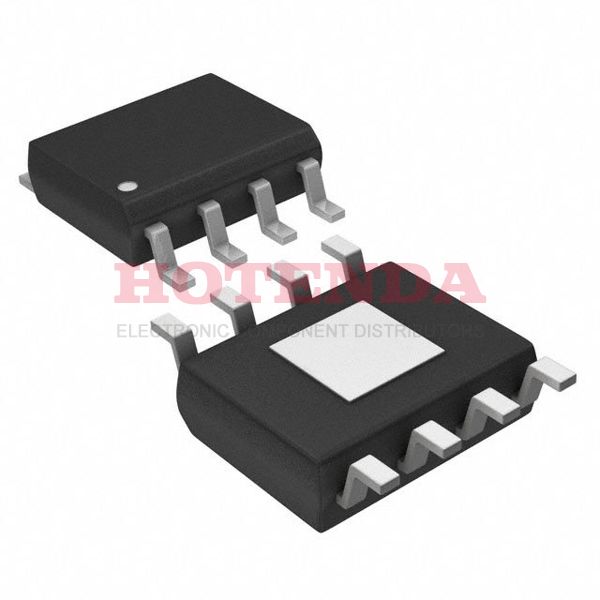

Description:Enable Adjustable 1.27 mm MIC59300 PMIC -- Series 8 8-SOIC (0.154, 3.90mm Width) Exposed Pad

Case Package:SOT-23

Datasheet:MIC59300YME Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width) Exposed Pad
Surface Mount	YES
Number of Pins	8
Supplier Device Package	8-SOIC-EP
Number of Terminals	8
Mounting Style	SMD/SMT
Supplier Package	SOIC
Input Voltage Range	1, 3.8 V
Maximum Input Voltage	3.8 V
Junction to Ambient	41 °C/W
Mounting	Surface Mount
Polarity Type	Positive
Regulator Output Type	Adjustable
Voltage Regulator Type	Linear
Dropout Voltage@Current (Max)	[email protected]/0.4@3A
Operating Temperature Classification	Automotive
Package Type	SOIC N EP
Dropout Voltage@Current (Typ)	[email protected]/0.205@3A
Operating Temp Range	-40C to 125C
Rad Hardened	No
MSL	MSL 2 - 1 year
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tube
Base Product Number	MIC59300
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2009
Series	--
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	8
ECCN Code	EAR99
Type	LDO
Terminal Finish	Matte Tin (Sn) - annealed
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	1.27 mm
Reach Compliance Code	compliant
Base Part Number	MIC59300
Pin Count	8
JESD-30 Code	R-PDSO-G8
Function	LDO
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	3.8V
Output Voltage	3.3V
Output Type	Adjustable
Max Output Current	3A
Polarity	Positive
Output Configuration	Positive
Output Current	3 A
Current - Output	3A
Control Features	Enable
Accuracy	1 %
Max Output Voltage	3.3V
Input Voltage (Min)	1(V)
Voltage - Output (Min/Fixed)	0.5V
Topology	LDO
Number of Regulators	1
Min Input Voltage	1V
Protection Features	Over Current, Over Temperature
Voltage Dropout (Max)	0.4V @ 3A
PSRR	65dB ~ 55dB (10kHz)
Seated Height-Max	1.68 mm
Dropout Voltage	205mV
Product Type	LDO Voltage Regulators
Min Output Voltage	500mV
Output Voltage1-Max	3.3 V
Output Voltage1-Min	0.5 V
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	3 A
Voltage - Output (Max)	3.3V
Dropout Voltage1-Max	2.1 V
Min Current Limit	3.3A
Screening Level	Extended Industrial
Operating Temperature TJ-Max	85 °C
Output Voltage Accuracy	1 %
Line Regulation	0.1 %/V
Load Regulation	0.5 %
Input Voltage	3.8(V)
Product Category	LDO Voltage Regulators
Height	1.5mm
Length	4.93mm
Width	4.93mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC59300YME Product Details

MIC59300YME Overview

In a Tube case, the IC voltage regulator is delivered. A 8-SOIC (0.154, 3.90mm Width) Exposed Pad case contains the Liner IC. In total, there are 8 terminations on the gadget. This PMIC chip has an output type of Adjustable. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. The current output of this IC regulator is 3A. The chip on which this is based has an overall count of 8 pins. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. A 8-pin is present on the chip. It is MIC59300 for this voltage regulator IC, just for your information. I would describe this component as a typical PMIC - Power Management ICs component. In this case, the regulator type is ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR, which corresponds to this voltage regulator IC. A maximum output current of 3A is required to meet the operation requirements. In fact, it is voltage regulator IC of the -- Series of cameras.
