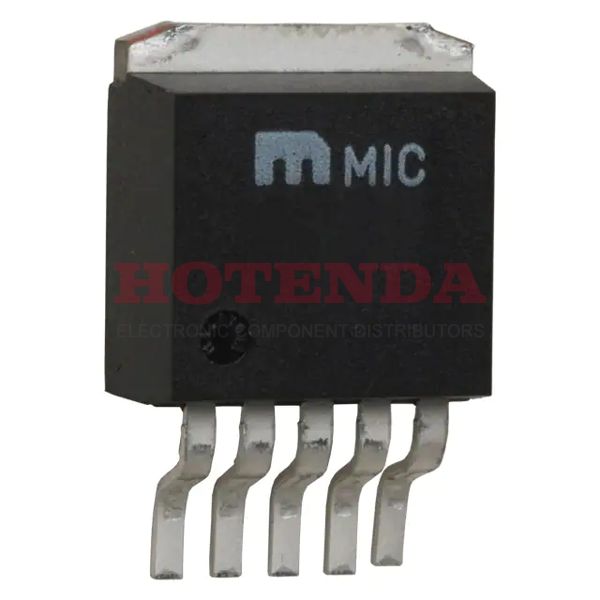

MIC59300-1.2WU Overview
Tube cases are used for delivery. The Liner regulator IC is packaged in TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 3A from this regulator IC. There are a total of 5 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 6 pins. For your information, the basic part number for this regulator IC is MIC59300. In this case, we have a typical PMIC - Power Management ICs component. There is one type of regulator for this device, which is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. In order to meet the operation requirements, its maximal output current reaches 3A. This IC regulator is a part of the -- Series of devices. You should use the regulator IC when the temperature is below 125°C. It is not possible to operate the chip below -40°C operating temperature.
MIC59300-1.2WU Features
205mV dropout voltage
PMIC - Power Management ICs subtageroy
The maximum operating temperature of -40°C
MIC59300-1.2WU Applications
There are a lot of Microchip Technology
MIC59300-1.2WU Linear Voltage Regulators applications.
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
