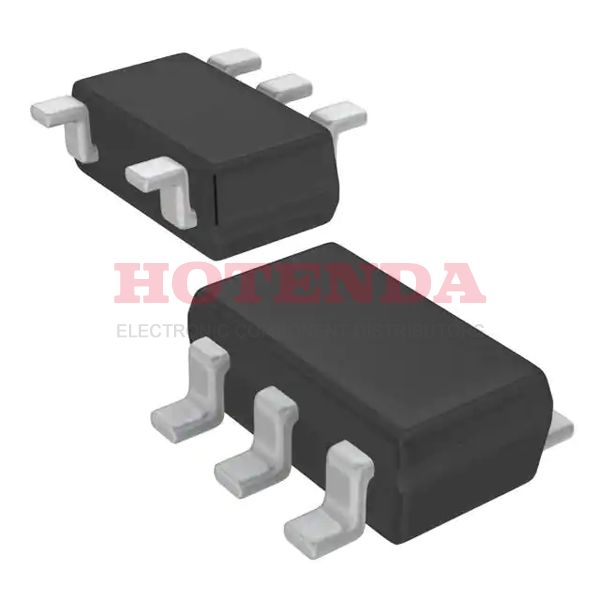

Name: MIC5504-3.3YM5-T5
Brand: Microchip Technology
SKU: MIC5504-3.3YM5-T5
Availability: InStock

new-10%

MIC5504-3.3YM5-T5

Manufacturer part number:MIC5504-3.3YM5-T5

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95mm MIC5504 PMIC - Series 5 SC-74A, SOT-753

Case Package:SOT-23

Datasheet:MIC5504-3.3YM5-T5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Surface Mount	YES
Number of Pins	4
Supplier Device Package	SOT-23-5
Number of Terminals	5
Supplier Package	SOT-23
Input Voltage Range	2.5, 5.5 V
Maximum Input Voltage	5.5 V
Junction to Ambient	253 °C/W
Mounting	Surface Mount
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5504
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	-
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
Packing Method	TAPE AND REEL
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.95mm
Reach Compliance Code	compliant
Base Part Number	MIC5504
Pin Count	5
JESD-30 Code	R-PDSO-G5
Function	LDO
Current - Supply (Max)	65μA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Voltage	3.3V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	0.3 A
Current - Output	300mA
Control Features	Enable
Output Voltage 1	3.3V
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Min Input Voltage	2.5V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	55μA
Voltage Dropout (Max)	0.38V @ 300mA
PSRR	60dB (1kHz)
Seated Height-Max	1.45 mm
Dropout Voltage	160mV
Dropout Voltage1-Nom	0.16V
Power Supply Rejection Ratio (PSRR)	60dB
Output Voltage1-Max	3.399 V
Output Voltage1-Min	3.201 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.38 V
Min Current Limit	400mA
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6V
Adjustability	FIXED
Line Regulation	0.3 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Load Regulation	40 V
Length	2.9mm
Width	1.6 mm
RoHS Status	ROHS3 Compliant

MIC5504-3.3YM5-T5 Product Details

MIC5504-3.3YM5-T5 Overview

The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a SC-74A, SOT-753 case is used. On the Voltage regulator IC, there are 5 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 300mA. As you can see, the regulator IC has a total of 5 pins. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 4 pins may be available. For your information, part number MIC5504 is the basic part number for this voltage regulator IC. As far as the regulator type, it is a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type. There is a TAPE AND REEL way of packing the IC voltage regulators in the box. The - Series is a series of products made by D-Link.
