Name: MIC5393-GMYMT-T5
Brand: Microchip Technology
SKU: MIC5393-GMYMT-T5
Availability: InStock

new-10%

MIC5393-GMYMT-T5

Manufacturer part number:MIC5393-GMYMT-T5

Manufacturer:Microchip Technology

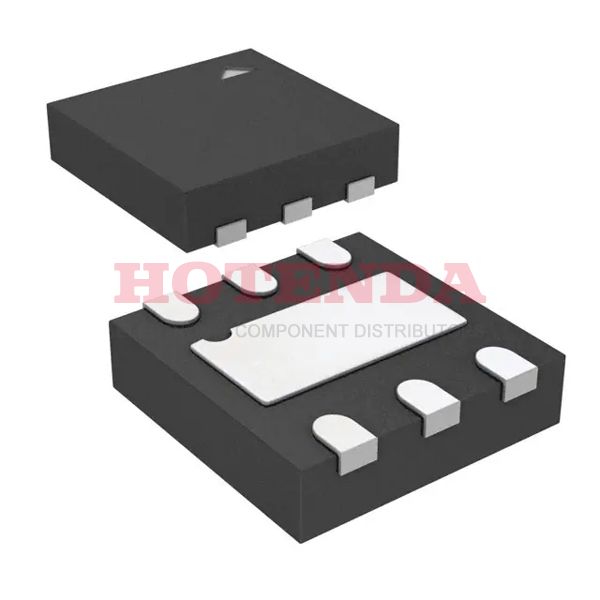

Description:Enable Fixed 0.4mm MIC5393 PMIC -- Series 6-UFDFN Exposed Pad

Case Package:SOT-23

Datasheet:MIC5393-GMYMT-T5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Surface Mount	YES
Number of Pins	6
Supplier Device Package	6-TDFN (1.2x1.2)
Number of Terminals	6
Package	Tape & Reel (TR)
Base Product Number	MIC5393
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2016
Series	--
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
Terminal Position	DUAL
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.4mm
Reach Compliance Code	compliant
Base Part Number	MIC5393
JESD-30 Code	S-PDSO-N6
Current - Supply (Max)	85μA
Number of Outputs	2
Voltage - Input (Max)	5.5V
Output Voltage	2.8V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA, 150mA
Control Features	Enable
Output Voltage 1	1.8V
Voltage - Output (Min/Fixed)	1.8V 2.8V
Number of Regulators	2
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	45μA
Voltage Dropout (Max)	0.31V @ 150mA 0.31V @ 150mA
PSRR	60dB (1kHz)
Seated Height-Max	0.6 mm
Dropout Voltage	155mV
Output Voltage1-Max	1.854 V
Output Voltage1-Min	1.746 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.3 V
Min Current Limit	200mA
Operating Temperature TJ-Max	125 °C
Output Voltage 2	2.8V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.8 V
Output Voltage2-Max	2.884 V
Output Voltage2-Min	2.716 V
Output Current2-Max	0.15 A
Dropout Voltage2-Max	0.3 V
Width	1.2 mm
Length	1.2 mm
RoHS Status	ROHS3 Compliant

MIC5393-GMYMT-T5 Product Details

MIC5393-GMYMT-T5 Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 6-UFDFN Exposed Pad package. There are 6 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 2 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 150mA, 150mA. To ensure prompt, sufficient performance, this part features 2 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 6. FYI, the basic part number for this IC regulator is MIC5393. The regulator type for this IC regulator is FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR. It is part of the -- Series.
