Name: MIC5373-MG4YMT-TR
Brand: Microchip Technology
SKU: MIC5373-MG4YMT-TR
Price: 0.62000 USD
Availability: InStock

new-10%

MIC5373-MG4YMT-TR

Manufacturer part number:MIC5373-MG4YMT-TR

Manufacturer:Microchip Technology

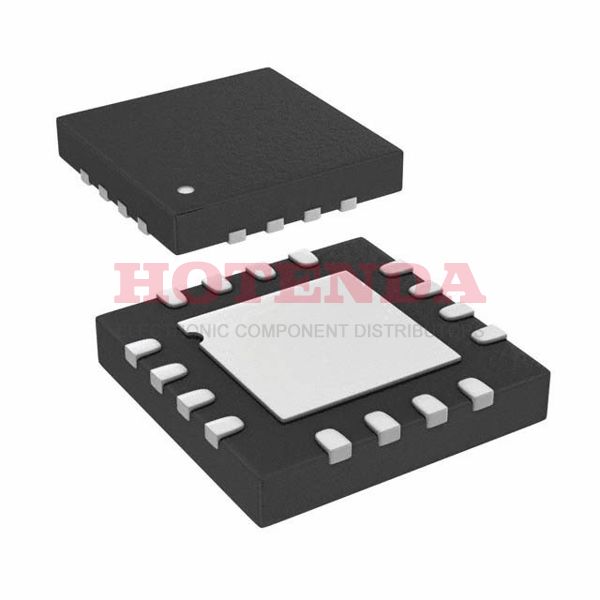

Description:Enable, Power On Reset Fixed 0.4 mm MIC5373 PMIC -- Series 16 16-UFQFN Exposed Pad, 16-MLF®

Case Package:SOT-23

Datasheet:MIC5373-MG4YMT-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-UFQFN Exposed Pad, 16-MLF®
Surface Mount	YES
Number of Pins	16
Supplier Device Package	16-MLF® (3x3)
Number of Terminals	16
Mounting Style	SMD/SMT
Supplier Package	UQFN
Input Voltage Range	1.7, 5.5 V
Maximum Input Voltage	5.5 V
Junction to Ambient	100 °C/W
Mounting	Surface Mount
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5373
Mfr	Microchip Technology
Product Status	Active
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package Shape	SQUARE
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Technology	CMOS
Terminal Position	QUAD
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.4 mm
Reach Compliance Code	compliant
Base Part Number	MIC5373
Pin Count	16
JESD-30 Code	S-XQCC-N16
Number of Outputs	3
Voltage - Input (Max)	5.5V
Output Voltage	1.2V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	0.2 A
Current - Output	200mA, 200mA, 200mA
Control Features	Enable, Power On Reset
Voltage - Output (Min/Fixed)	1.2V 1.8V 2.8V
Number of Regulators	3
Min Input Voltage	1.7V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	20μA
Voltage Dropout (Max)	0.45V @ 150mA 0.45V @ 150mA 0.33V @ 150mA
PSRR	55dB (1kHz)
Seated Height-Max	0.6 mm
Dropout Voltage	170mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.275 V
Output Voltage1-Max	2.884 V
Output Voltage1-Min	2.716 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	0.2 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.33 V
Min Current Limit	200mA
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6 V
Output Voltage Accuracy	2 %
Adjustability	FIXED
Line Regulation	0.3 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.8 V
Load Regulation	1 %
Output Voltage2-Max	1.854 V
Output Voltage2-Min	1.746 V
Output Current2-Max	0.2 A
Dropout Voltage2-Max	0.45 V
Product Category	LDO Voltage Regulators
Width	2.5 mm
Length	2.5 mm
RoHS Status	ROHS3 Compliant

MIC5373-MG4YMT-TR Product Details

MIC5373-MG4YMT-TR Overview

An Tape & Reel (TR) case is included with the delivery. There is a 16-UFQFN Exposed Pad, 16-MLF® case with the integrated voltage regulator. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 3 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~125°C degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 200mA, 200mA, 200mAmp current output on this voltage regulator IC. It has a total of 16 pins on IC voltage regulator. In order to ensure prompt, adequate, and prompt performance, this regulator has 3 outputs in total. In terms of its dropout voltage, it is 10 volts. There are 16 pins on the chip. It is MIC5373 for this regulator, just for your information. In this instance, we are dealing with a typical PMIC - Power Management ICs-shaped component. It is worth mentioning that the regulator type for this regulator IC is FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR. In order to pack the regulator, the method is TR. This regulator IC is a part of the -- Series. Utilize the regulator IC when the temperature is below 125°C. It is recommended that the chip be operated at a temperature no lower than -40°C operating temperature.
