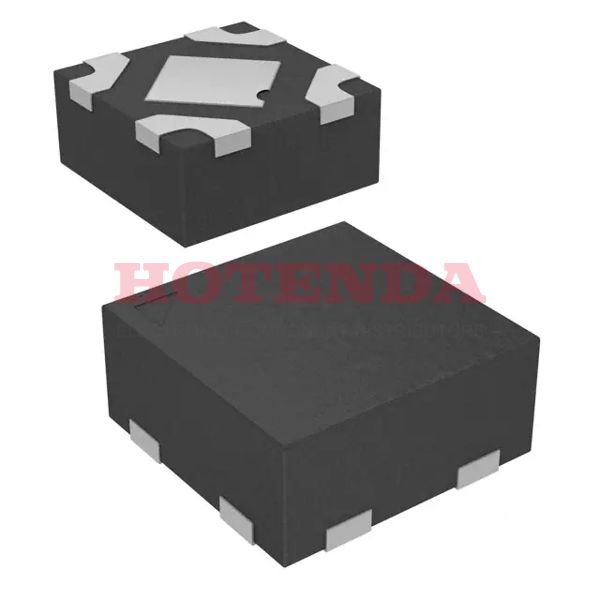

Name: MIC5366-2.6YMT-TR
Brand: Microchip Technology
SKU: MIC5366-2.6YMT-TR
Availability: InStock

new-10%

MIC5366-2.6YMT-TR

Manufacturer part number:MIC5366-2.6YMT-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.625 mm MIC5366 PMIC -- Series 4-UDFN Exposed Pad, 4-TMLF®

Case Package:SOT-23

Datasheet:MIC5366-2.6YMT-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	4-UDFN Exposed Pad, 4-TMLF®
Surface Mount	YES
Supplier Device Package	4-TMLF® (1x1)
Number of Terminals	4
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5366
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e4
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code	8542.39.00.01
Packing Method	TR
Technology	CMOS
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.625 mm
Reach Compliance Code	compliant
Base Part Number	MIC5366
JESD-30 Code	S-PDSO-N4
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	2.6V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	39μA
Voltage Dropout (Max)	0.38V @ 150mA
PSRR	80dB ~ 65dB (1kHz ~ 10kHz)
Seated Height-Max	0.6 mm
Dropout Voltage1-Nom	0.18 V
Output Voltage1-Max	2.678 V
Output Voltage1-Min	2.522 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.38 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.6 V
Width	1 mm
Length	1 mm
RoHS Status	ROHS3 Compliant

MIC5366-2.6YMT-TR Product Details

MIC5366-2.6YMT-TR Overview

A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A 4-UDFN Exposed Pad, 4-TMLF® case is used for packaging. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. As far as its current output is concerned, it stands at 150mA. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. For your information, this regulator's basic part number is MIC5366. It is important to note that this device has a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR regulator type. There is a way of packing the regulator that is called TR. Among the -- Series, the IC voltage regulator is one of the most popular models.
