Name: MIC5366-1.3YC5 TR
Brand: Microchip Technology
SKU: MIC5366-1.3YC5 TR
Availability: InStock

new-10%

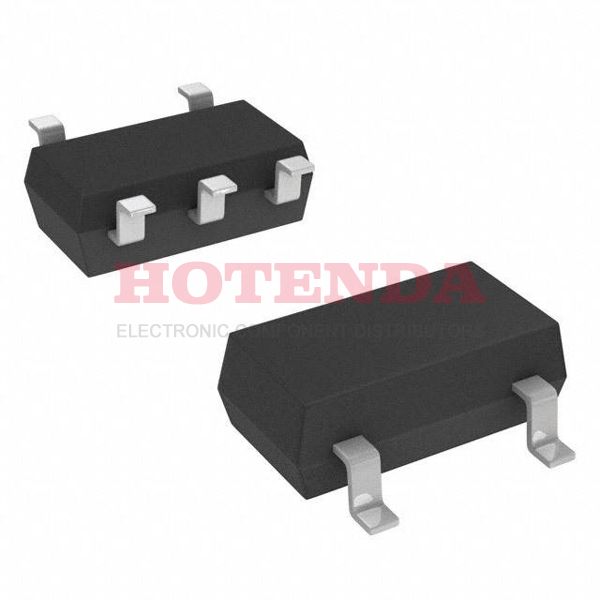

MIC5366-1.3YC5 TR

Manufacturer part number:MIC5366-1.3YC5 TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65 mm MIC5366 PMIC -- Series 5-TSSOP, SC-70-5, SOT-353

Case Package:SOT-23

Datasheet:MIC5366-1.3YC5 TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Surface Mount	YES
Supplier Device Package	SC-70-5
Number of Terminals	5
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5366
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e4
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	NICKEL PALLADIUM GOLD
HTS Code	8542.39.00.01
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	MIC5366
JESD-30 Code	R-PDSO-G5
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	39μA
Voltage Dropout (Max)	0.38V @ 150mA
PSRR	80dB ~ 65dB (1kHz ~ 10kHz)
Seated Height-Max	1.1 mm
Output Voltage1-Max	1.339 V
Output Voltage1-Min	1.261 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.38 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.3 V
Width	1.25 mm
Length	2.025 mm
RoHS Status	ROHS3 Compliant

MIC5366-1.3YC5 TR Product Details

MIC5366-1.3YC5 TR Overview

An Tape & Reel (TR) case is included with the delivery. There is a 5-TSSOP, SC-70-5, SOT-353 case with the integrated voltage regulator. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 1 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~125°C degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 150mAmp current output on this voltage regulator IC. It is MIC5366 for this regulator, just for your information. It is worth mentioning that the regulator type for this regulator IC is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. This regulator IC is a part of the -- Series.
